Complete Fish Feed Project Provided by Gamma Tech

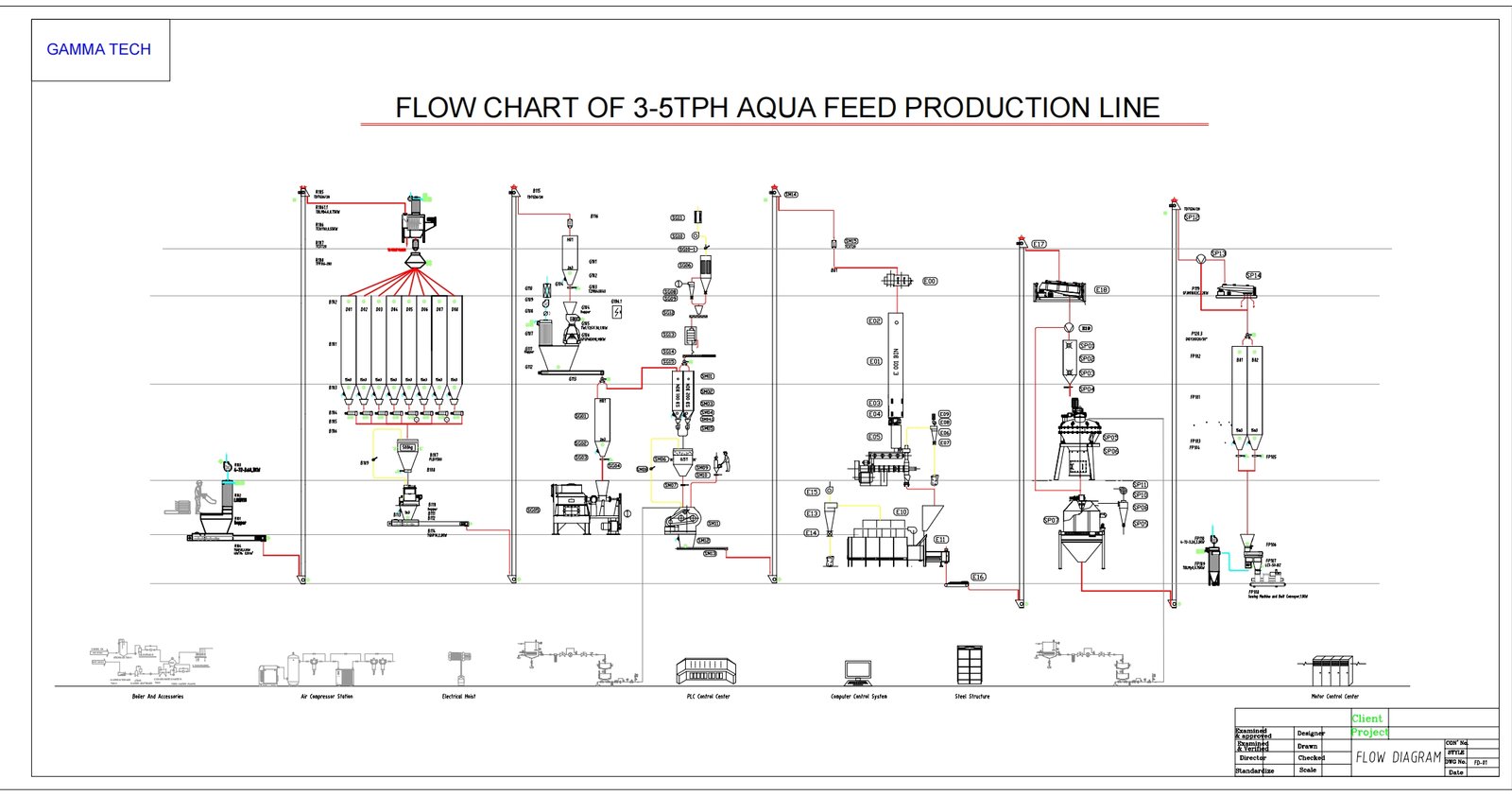

Flow Chart
Feed mill process components :
Gamma Tech is one integrated project supplier . the whole project including below process :
- Raw material receiving system :including dumping pit /chain conveyor/elevator/ precleaner/magnet /two way inverter . mainly cleaning the dust and impurities especially some steel and plastic impurities inside the raw material to protect the equipment in the following process.

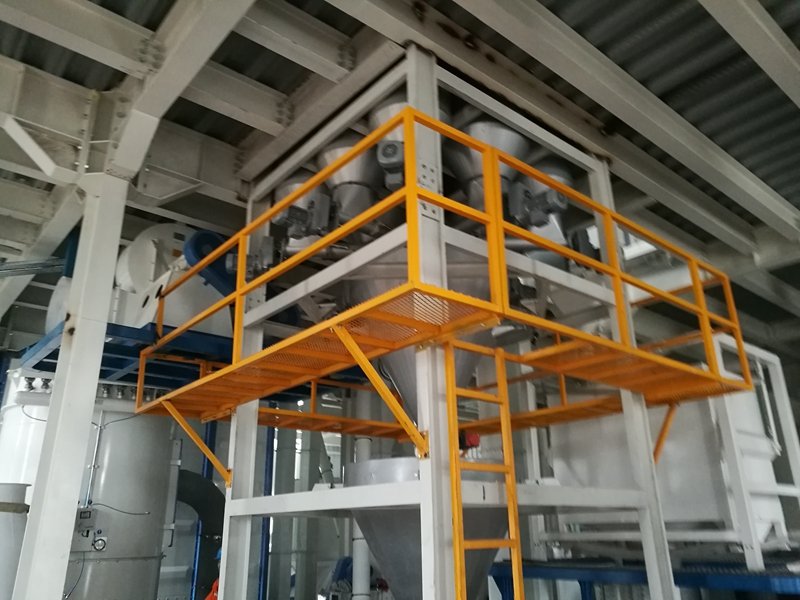

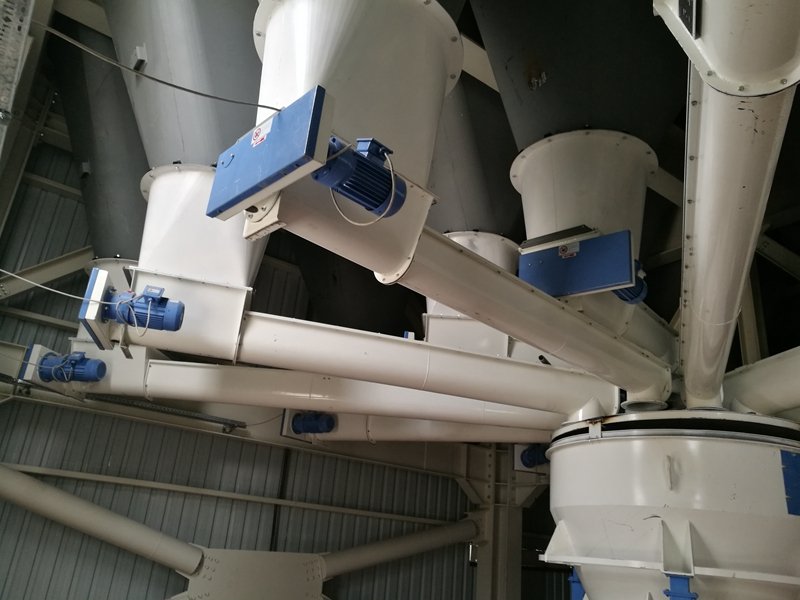

- Batching and Primary Mixing Process : including bolted batching bins with different Volumn as per the formulation ,dosing screw and scale system to weigh as per formulation ,before grinding , we will use ribbon mixer or paddle mixer to have a primary mixing to ensure the hammer mill with stable current and good grinding result.

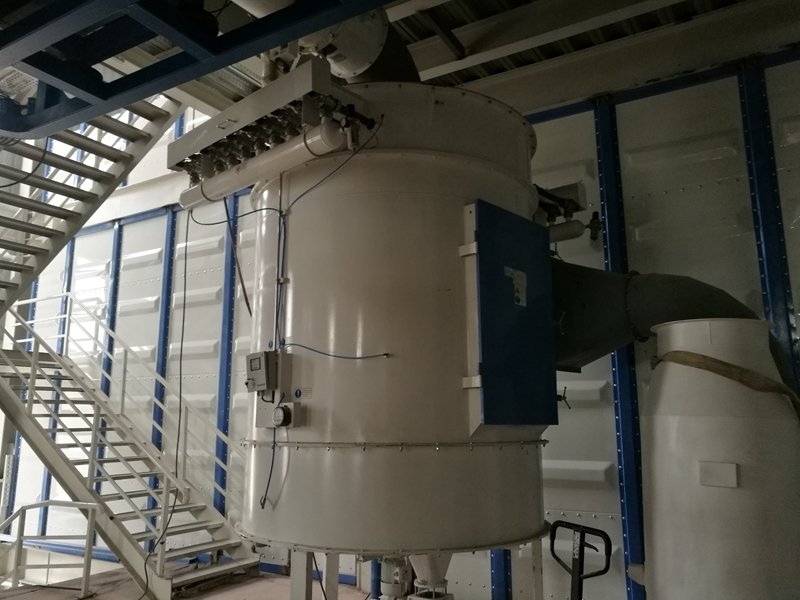

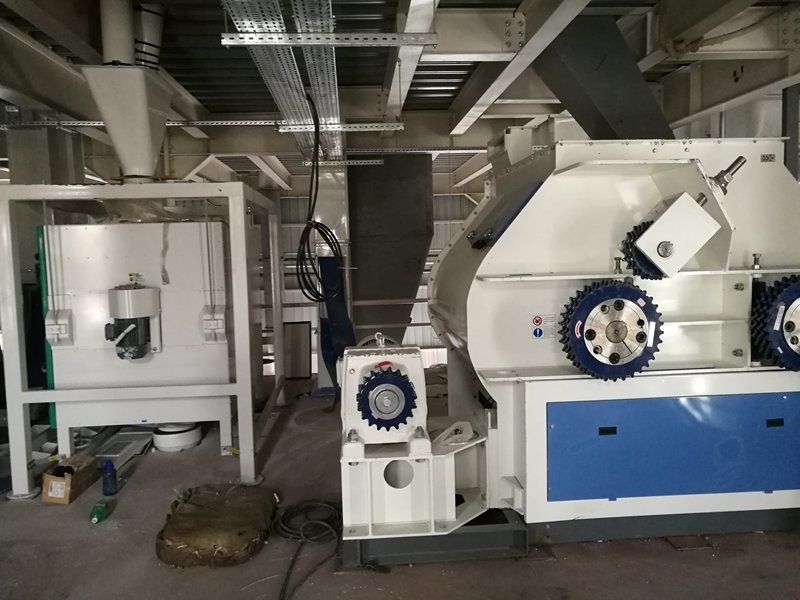

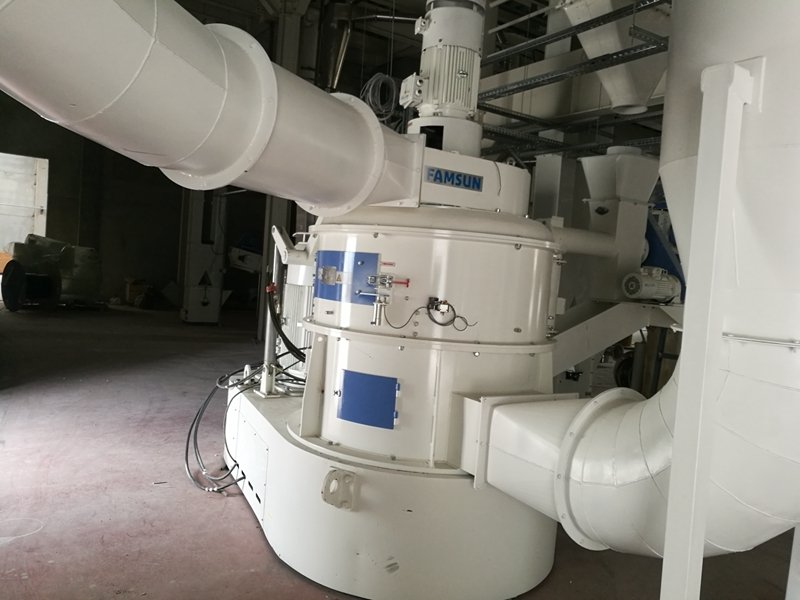

- Primary Grinding system :including hammer mill and asperation system which help to increase the grinding efficiency and remove dust ,sealed conveyor and elevator,distributor. if we make big size of fish feed . just one stage fine grinding hammer mill is enough ,but if we want to make small size pellets we shall use Pulverizer to have super fine grinding , we will grind the material into over 90% pass 60 mesh.

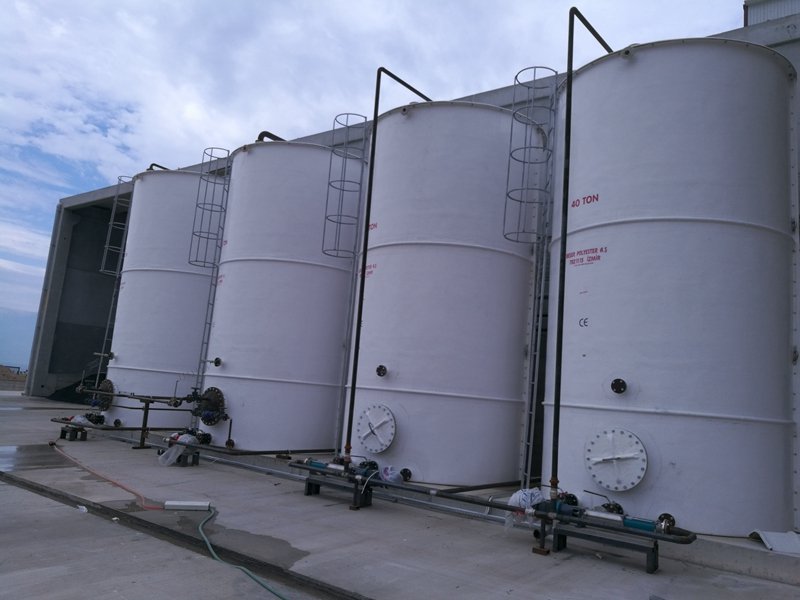

- Second Stage Mixing : after fine grinding or ultra fine grinding , we shall have second stage mixing again , here we can add liquid like oil or premix etc.

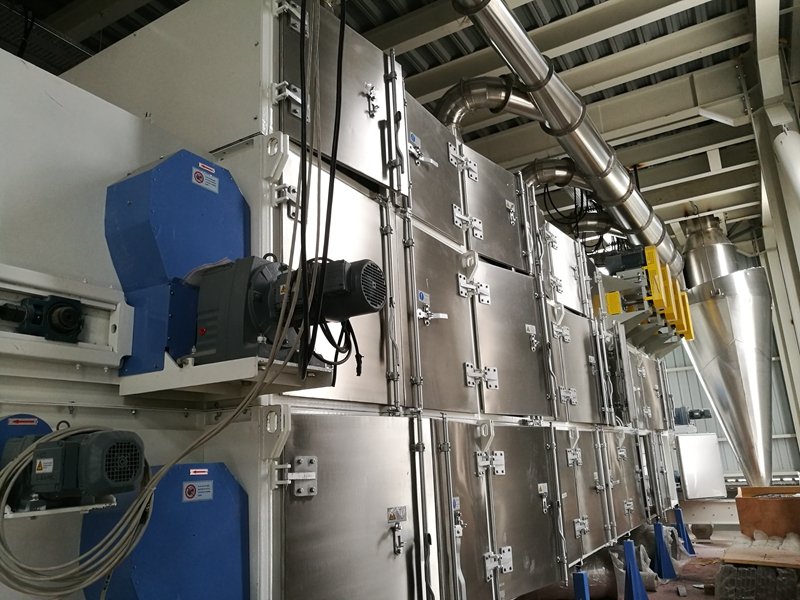

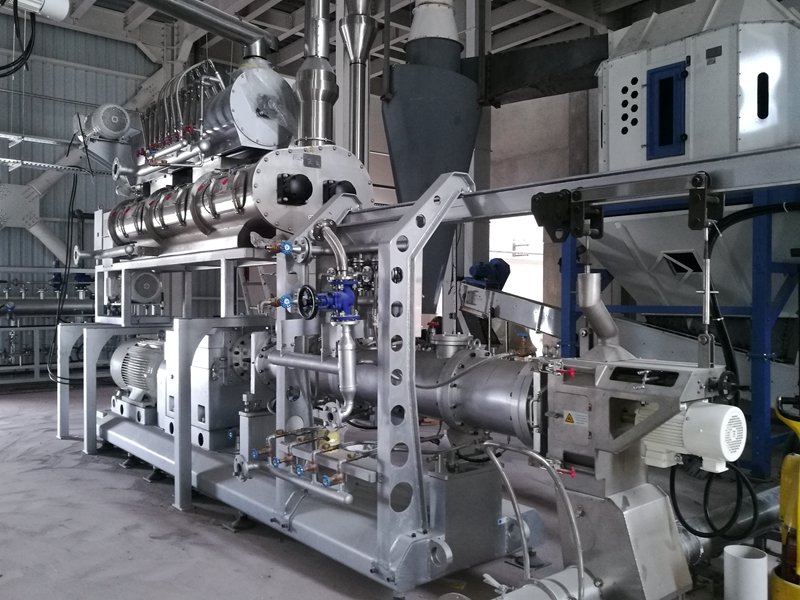

- Extruder and drying system : including extruder and dryer . we provide single screw feed extruder and double screw extruder to produce both floating and sinking fish feed. box type dryer will reduce the moisture to be suitable for packing.
- Finished Product Packing and bulk loading system:including finished product bins and packing machine to have 50kg per bag and bulk loading conveyor to the feed bulker to make bulk loading directly .
- Electric Control System : we provide Siemens Platform Control software with Siemens PLC to make full automatic control system ,also for the electric components inside the control panel we are mainly supply Schneider brand and chint (top brand in china).

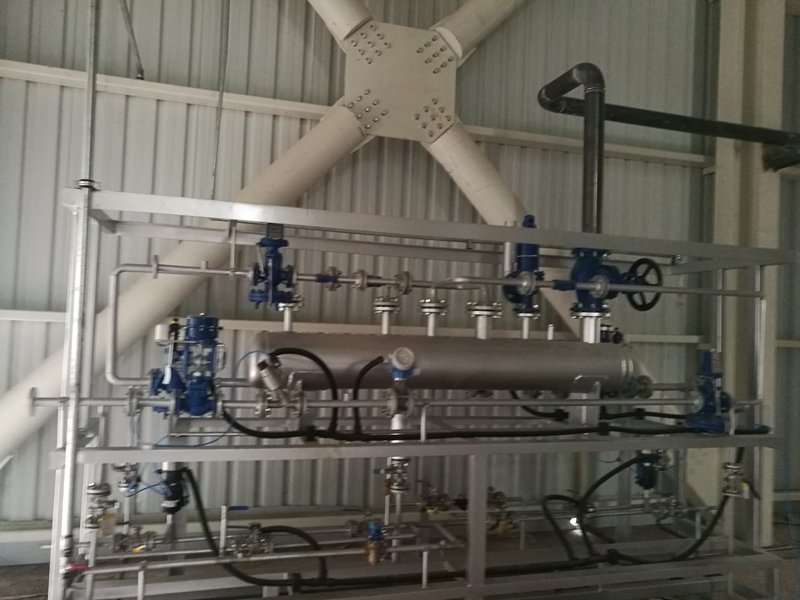

- Auxiliary system: we also provide steam boiler to supply steam to the feed mill and air compressor to supply compressed air for mixer and all penumatical equipment like slide gates and two way diverters etc
the products Gamma Offer you
Gamma Tech is a professional manufacturer of feed machinery and auxiliary system. Our company is committed to producing high-quality core feed equipment accessories, serving feed producers worldwide. belown we are showing some photos for the feed mill we made as below:
what makes us difference
Project
Full Turnkey Feed mill Provider
one step solution supply
we supply customized solution of feed mills , already we supplied over 100 projects in worldwide, our main market out of china it is south East Asia and middle east , also south America etc.
High Quality Main machines
good tools make good machines, also we utilize internatioanl brands for Key parts in the machine like motor and bearing etc
Manufacturing and direct supply
we are direct manufacturing and assembly to ensure the quality and spare parts supply
customized design with strong technical team
we have our own designer team to supply customized design for you as per your land and formualtion ,budget .
commissioning and traning
all projects we will send engineer to supervise the installation and commissioning . before handover we will make traning and ensure your team are familiar with the machinery maintainance etc
strong Services after sales
we have online trouble shooting team and also we can make service on site .
if you want to make fish feed factory . we can provide floating and sinking fish feed factory .whatever you want to replace Single machine or want to make full turnkey project , you can contact us.
Get Free Quote
Make An Trail Order
Please provide detailed information for the feed type and capacity .we will offer you a quotation tailored to your needs.
