corn/Barly Flaking System
Gamma Tech has been committed to providing flaking technology and complete equipment to agricultural breeding users in China and the international market. We have provided more than 50 sets of flaking equipment in the Chinese market, and provided customers with complete solutions for corn flaking and wheat flaking. We are a complete solution provider from raw material cleaning to wheat tempering and flaking, drying and cooling to the final finished product storage. We have improved the process according to different market characteristics and needs. Providing customers with the most suitable solutions in different international markets has always been the ultimate pursuit of Gamma Tech

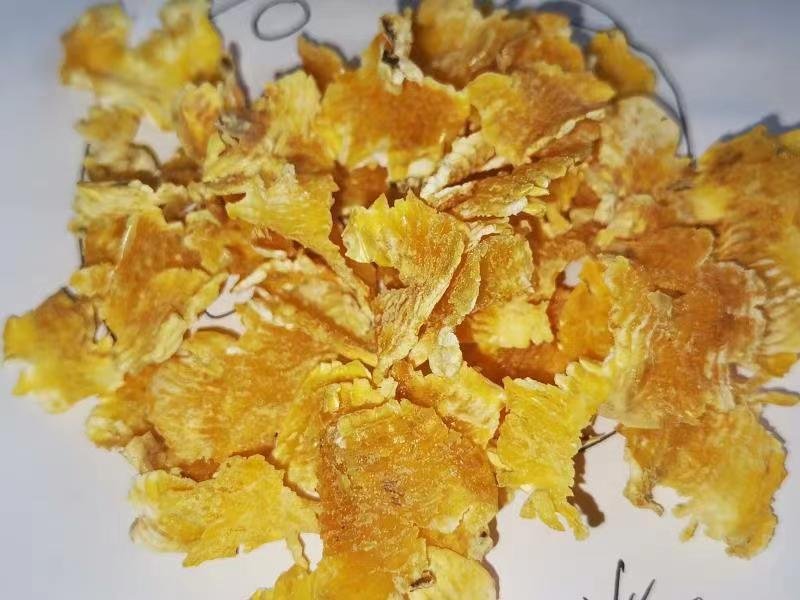

Corn Flakes

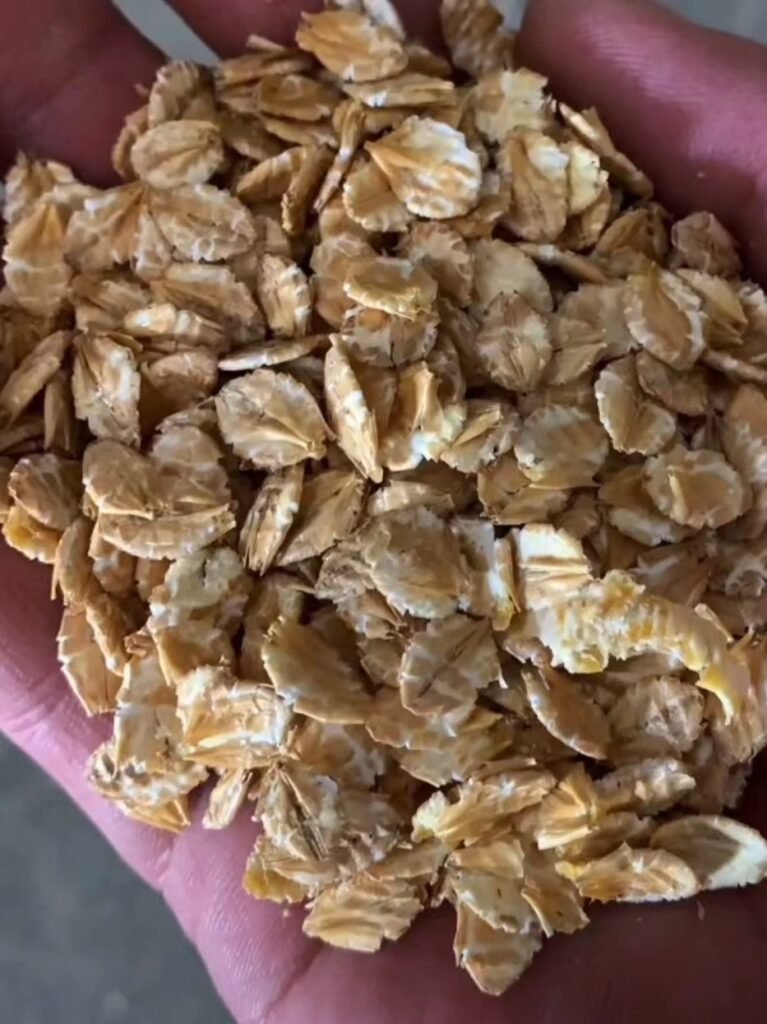

Barly Flakes
Sheep
Dairy Cow

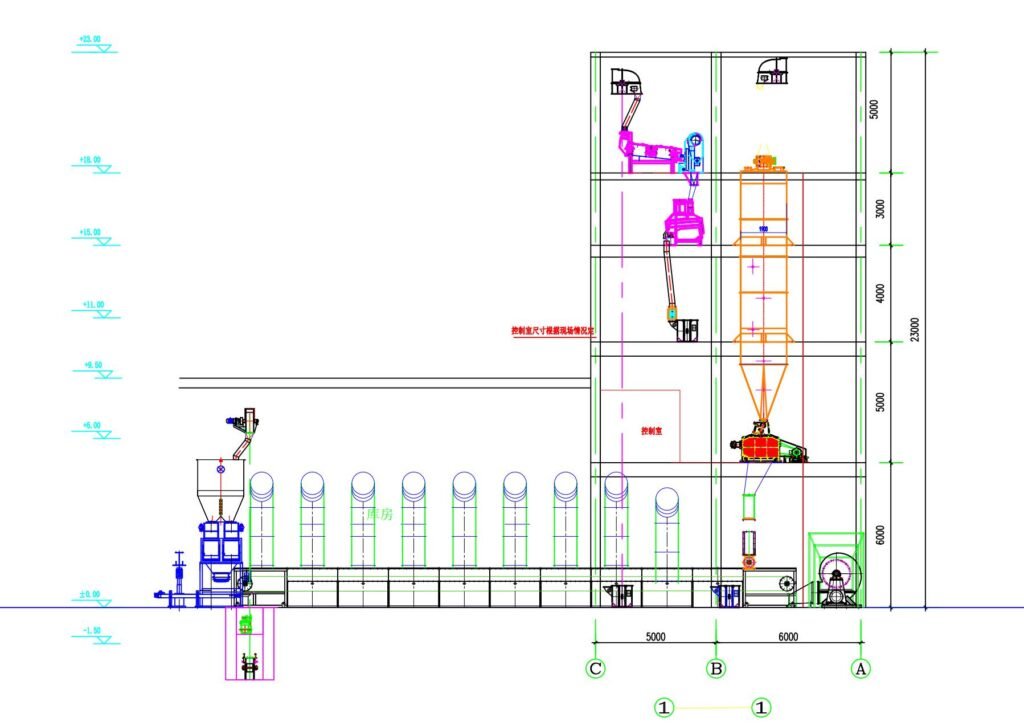

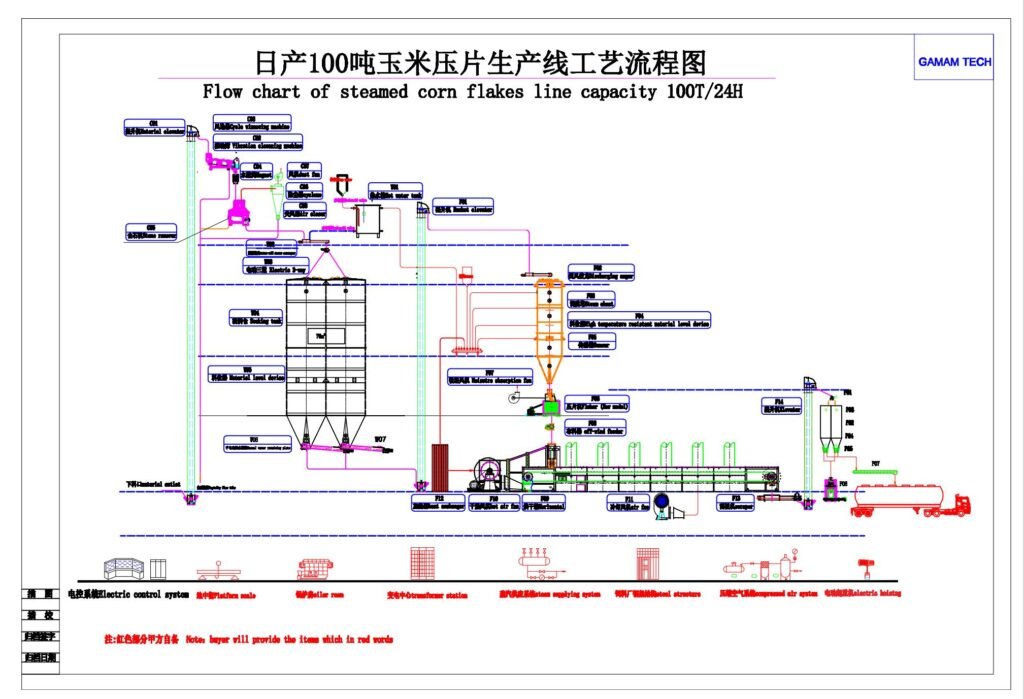

Flow chart&Design

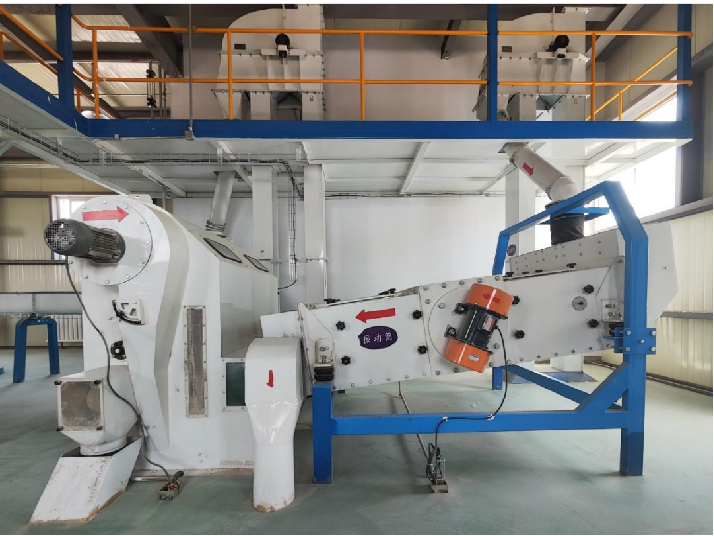

before flaking process, we will make cleaning for the raw material to protect the roller of flaking machine, vibration sifter will remove the impurities , magnet will remove the steel impurities ,destoner will remove the small stones . also we will have asperation system(fan and cyclone) to protect the environment in the workshop to avoid dust.

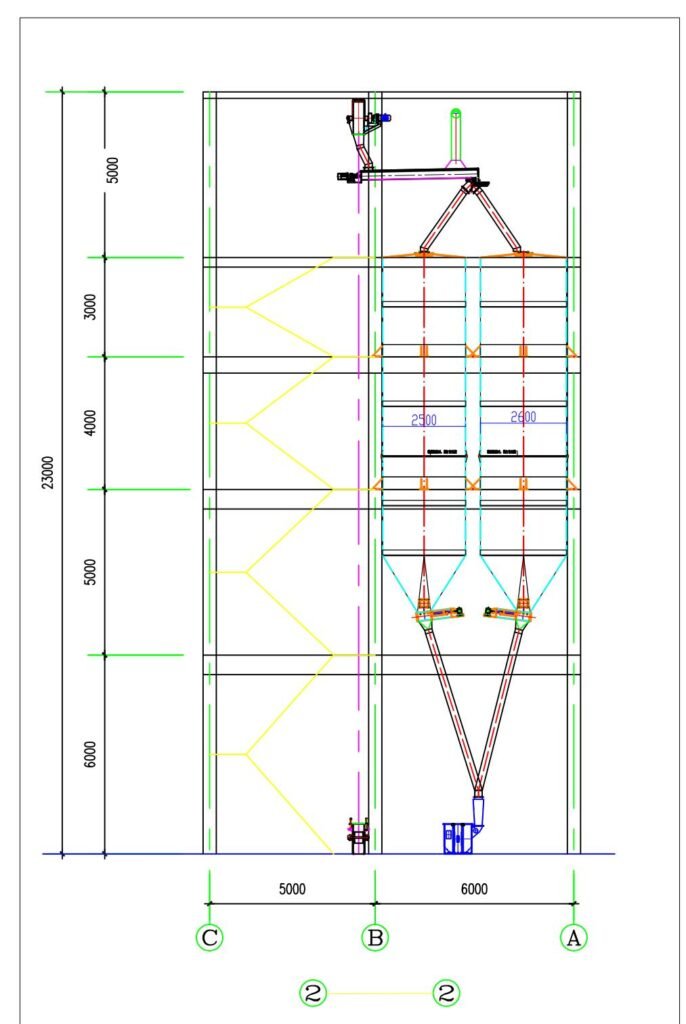

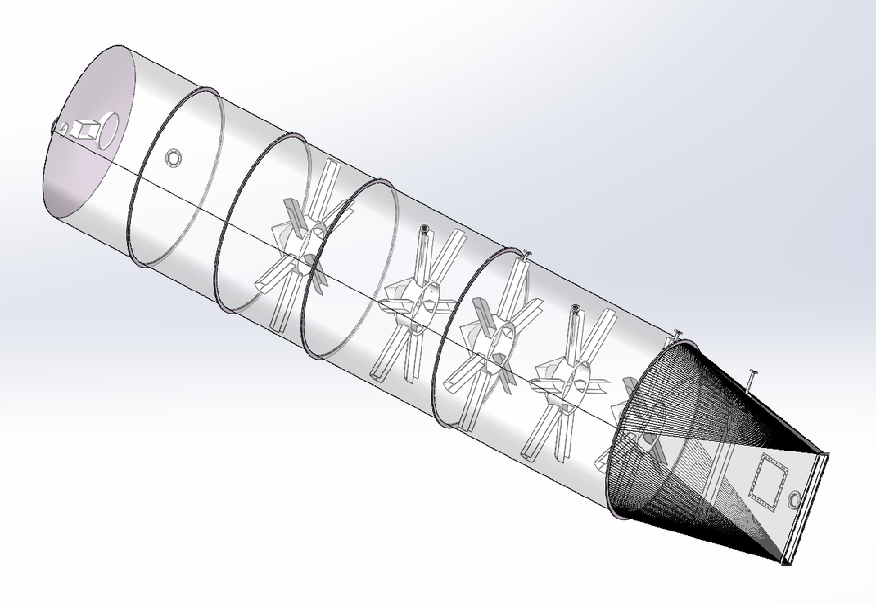

Conditioner Tower:There are 6 layers of steam distribution and equalization devices in the modulation tower, which can ensure that the steam is evenly distributed inside the modulation tower to achieve a uniform tempering effect.
The steam and corn move in the opposite direction, so that the material is gradually tempered from bottom to top. After about 1 hour of steaming, the moisture content of the corn can be increased from 16~18% at the original inlet to 18~20% at the outlet, and the degree of maturity can be adjusted to 65~80%, and the temperature of the corn can also be increased to 100ºC.

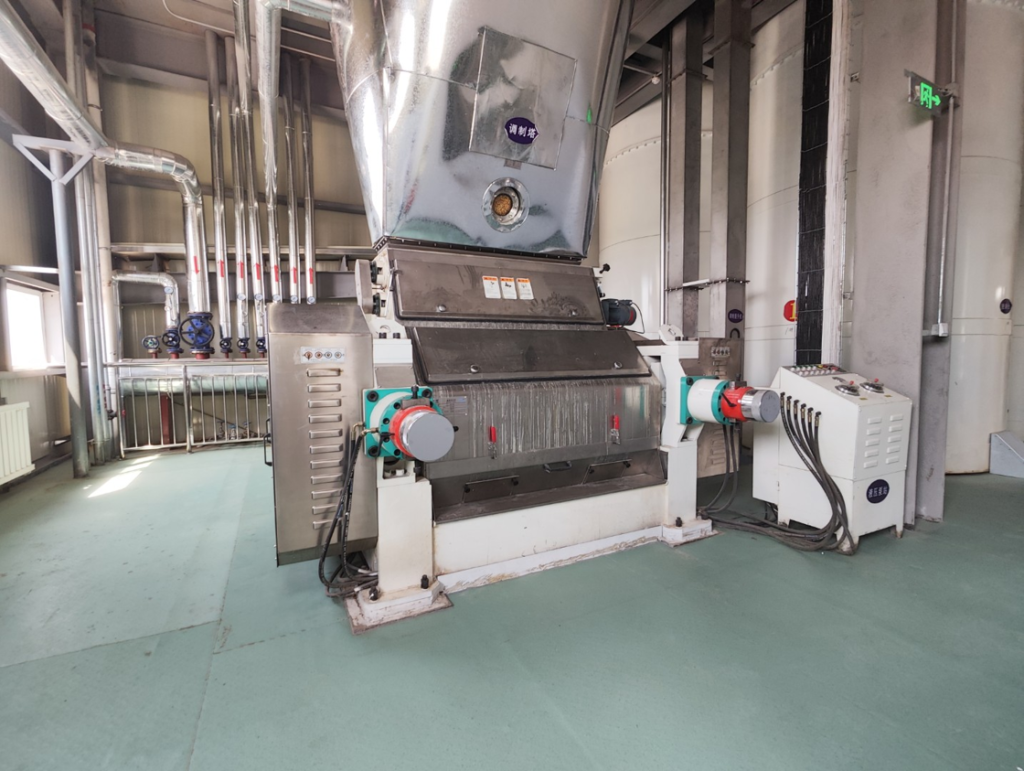

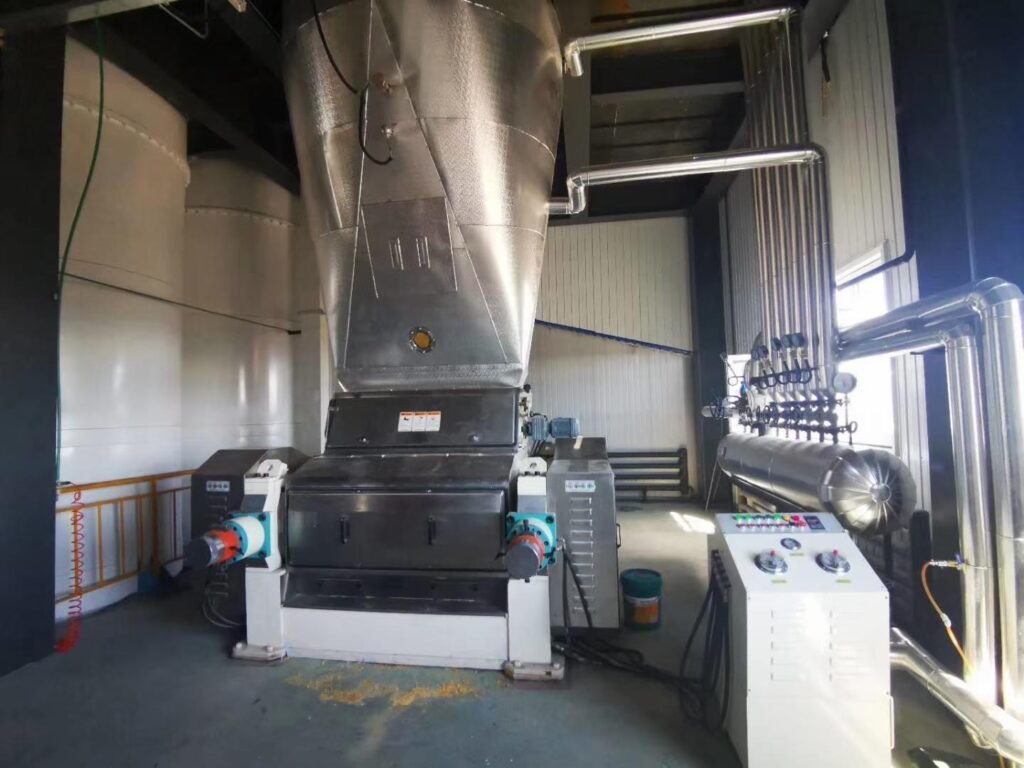

Flaking Mill:
1.The shell, protective cover plate and front and rear upper and lower door panels of FC7175SF steam corn tablet press are made of all stainless steel plates, and the part in contact with materials is SS304 stainless steel;
2. Energy-saving PLC hydraulic pump station, all control speed regulation and separation and combination of rollers can be controlled by the pump station;
3. China First Heavy High Nickel Chromium-Molybdenum Alloy Roller is adopted, centrifugal composite casting, hardness HS75±3, after dynamic balancing inspection, alloy layer thickness 30-35mm, one wire drawing can process 35000-45000 tons of corn tablets;
4. Equipped with magnetic separation mechanism to prevent iron in the material from damaging the roller; fully enclosed design, safe and beautiful;
5. The pulley adopts a tension sleeve design, and the roller does not need to destroy the bearing when disassembling, and the pulley adopts CPT brand
1. Head and tail box: made of 8mm carbon steel.
2. Box body: 2.5mm aluminum-zinc plate laser CNC production;
3. Equipped with observation window, maintenance door, hand hole;
4. Temperature sensor: PT100;
5. Equipped with uniform turning system;
6. Guomao hardened gear reducer: 0.75kw*1
7. Bottom exhaust ventilation: 1.5mm201 stainless steel one-time stamping;
8. Drying evenly without leakage;
9. Chain: 304 stainless steel material;
10. Square tube: galvanized steel pipe material;
11. Material level switch: Jiuling brand;
12. Design condensate centralized drainage system;
Production Vedio
what we can do?
SIngles Machines
We offer all the single machines for your flaking process ,from cleaning equipment to flaking mill ,cooler and dryer and packing machine ,we can supply all those machines for you as per your demand
Machines Replacement
if you already have the process of flaking mill ,and after long time machine are becoming old and low efficiency ,so we could help you to replace some of the equipment that you prefer and you can improve your factory,
Spare parts
for your factory, we can supply spare parts of your flaking mill ,elevators ,chain conveyors etc ,so offer you one more option for spare parts and help you decrease your spare parts cost maybe ,reduce the delivery time
Turnkey Project of Flaking
if you have the plan to make one new plant, we can supply the whole project from steel strcture machinery and control .even the auxiliary system like steam boiler ,electric hoist we also can supply
Consultation
many clientsl will ask us to make consultation for them when they come to make up their own project plan, we could help to make budget for them, general layout for them to help them to make good preperation
Service
in general we would like to provide our service ,gamma tech is reputated by service before and after sales , we have service team which can come to you to help you to solve the problems in your factory .
Get Free Quote
If you’re considering to make your own corn or barly flaking project, or you want to improve or replace your machines in your plant ,you can reach us and we can help you to make free consultation for the primary design and budget preparation .we hope to be your business partner and help you to build one reliable plant of flakes , so you don’t need to buy flakes from outside, also we have some economy design if it is only for your own farm. more details pls email to us , certainly we could help you .
