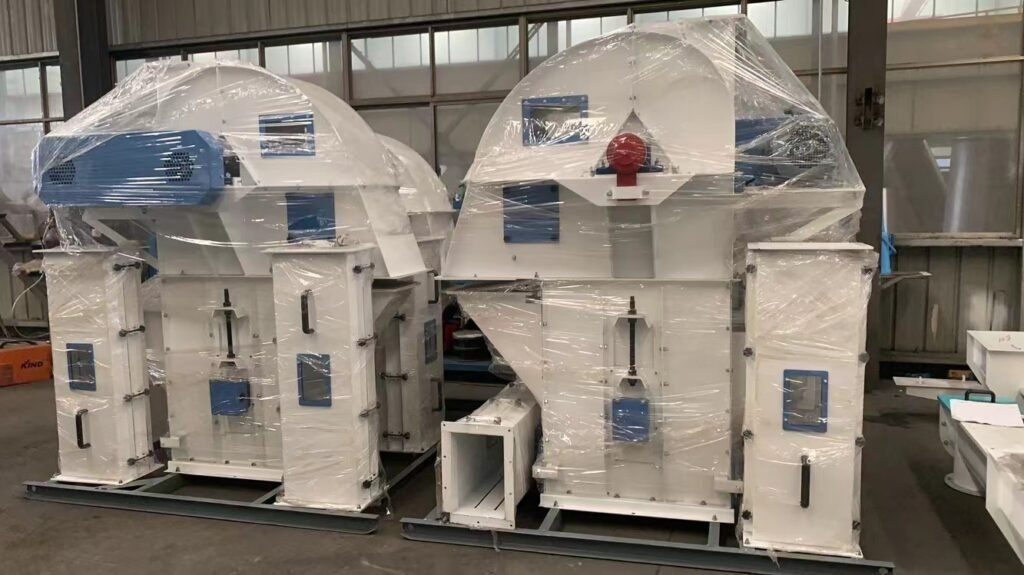

bucket Elevator
This series elevator used for the vertical lifting of particle and powder material in grain,oil, food, feed and chemical industry. Characteristics: Appearance design is novel, safe and reliable work, simple structure, full function, good sealing, low noise. Especially ensure the use efficiency with its high yield, low flow, low failure rate and long service life.And can be used both for powder and particle materials, it equipped with explosion-proof cover, pressure balance device. Due to the hoisting height and yield can be handed in,flexible process layout, strengthen its adaptability .Therefore, it is an ideal elevator equipment at present
- High thickness to ensure long life spam
- Equipped with Speed Sensor ,anti-stop device and anti-deviation Sensor

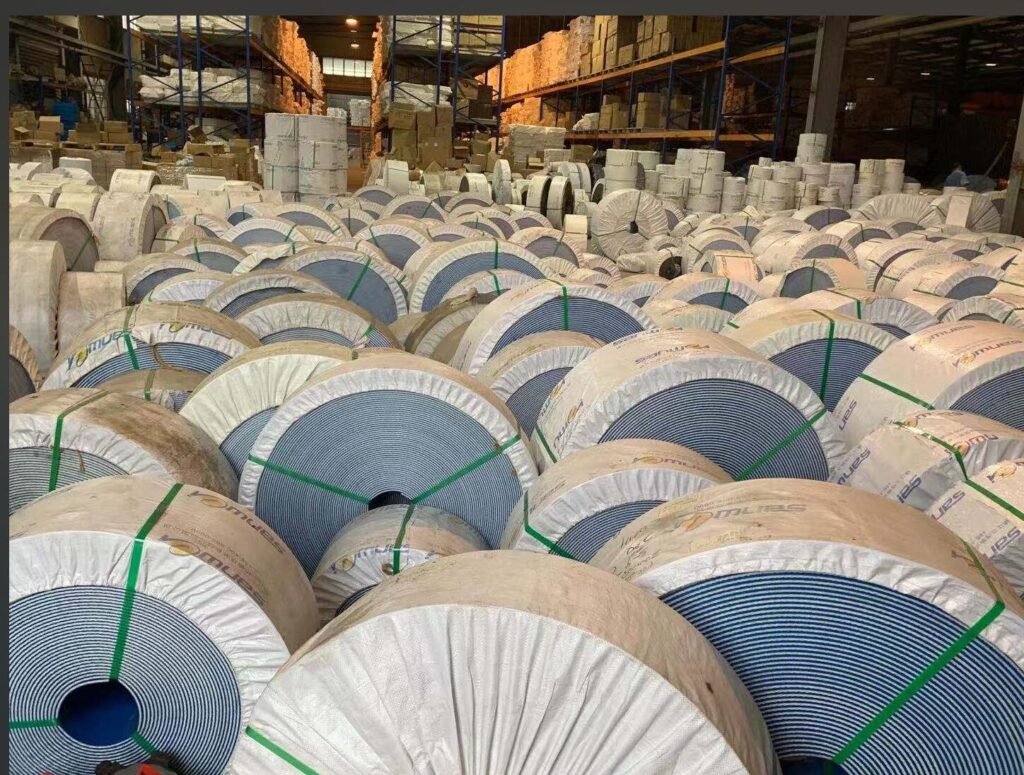

- Pvc belt with high temprature resistant

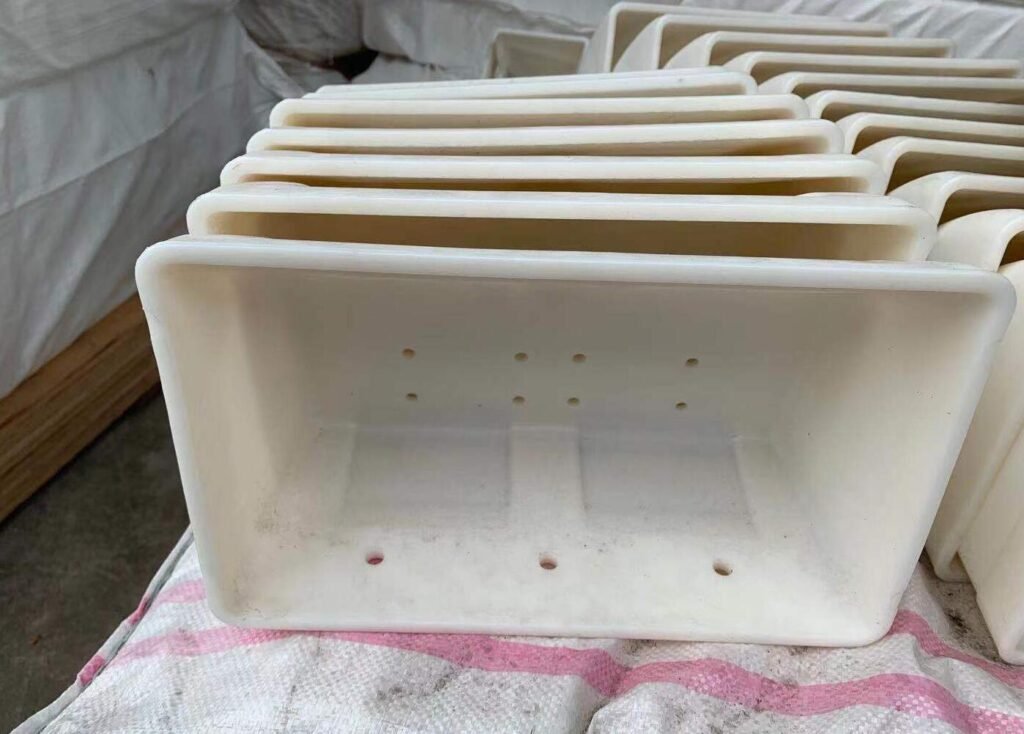

- Nylone Buckets are standard for high Grade Customer
- Special Case to protect sensor
- Stable and reliable operation
elevator Specifications
| MODEL | BUCKE TYPE | SPEED | BUCKET DIMENSION | BOLT | CAPACITY M3/H |
|---|---|---|---|---|---|
| TDTG36/23 | DQ2312 | 1.28 | 235×143×96 | 2-M8×35 | 20 |
| TDTG36/28 | DQ2814 | 1.59 | 285×146×96 | 3-M8×35 | 35 |
| TDTGk40/23 | DQ2314 | 1.49 | 235×155×90 | 2-M8×35 | 40 |
| TDTGk40/28 | DQ2814 | 1.86 | 285×155×90 | 3-M8×35 | 55 |
| TDTGk50/23 | DQ2314 | 1.49 | 235×155×90 | 2-M8×35 | 60 |
| TDTGk50/28 | DQ2814 | 1.86 | 285×155×90 | 3-M8×35 | 80 |
| TDTGk50/32 | DQ3216 | 2.36 | 330×165×111 | 4-M8×35 | 110 |
| TDTGk60/28 | DQ2816 | 2.31 | 290×165×108 | 3-M8×35 | 120 |
| TDTGk60/33 | S3321 | 3.90 | 337×215×140 | 4-M8×35 | 200 |
Structure
Chain Conveyor
TGSS drag conveyor is generally used for conveying granular material, its bottom is connected by bolts, drag is made of engineering plastics, which is of low noise and less wear; base plate and side plate can be conveniently replaced and service life is long;
It is of simple structure, less floor area and convenient installation
Running is safety and reliable, operation and maintain are easy and convenient with no complicate control technology
Sealing performance is good, material is conveyed in sealed trough with no splashing and leakage, it is dust proof, water proof and explosion proof, so that pollution on material can be avoided, working condition of workers is perfected and environmental pollution is avoided
Technological arrangement is flexible and convenient, feeding and discharging devices are simple and reliable, which can satisfy feeding and discharging at several points, and also can be sued for conveying material in different directions;
Damage to material is small, consumption is small, so that production cost is reduced and efficiency is improved;
Stable and reliable operation
Conveyor Specifications
| MODEL | TGSS16A | TGSS20A | TGSS25A | TGSS32A | TGSS40A |
|---|---|---|---|---|---|
| CROSS-SECTIONAL DIMENSIONS (WIDTH × HEIGHT MM) | 160x380 | 200x380 | 250x440 | 320x440 | 400x440 |
| TOTAL WEIGHT OF HEAD AND TAIL (KG) | 140 | 165 | 235 | 254 | 260 |
| AVERAGE WEIGHT PER METER (KG) | 30 | 40 | 40 | 48 | 49 |
| CONVEYING SPEED (M/S) | 0.48 | 0.48 | 0.5 | 0.5 | 0.5 |
| TOP PLATE THICKNESS(mm) | 2 | 2 | 2 | 2 | 2 |
| BOTTOM PLATE THICKNESS(mm) | 5 | 5 | 5 | 5 | 5 |
| SIDE PLATE THICKNESS | 4 | 4 | 4 | 4 | 4 |
| FFECTIVE TROUGH WIDTH (mm) | 160 | 200 | 250 | 320 | 400 |
| SCRAPER CHAIN PITCH (mm) | 66.7 | 66.7 | 66.7 | 66.7 | 66.7 |
| MAXIMUM CONVEYING DISTANCE (M) | 60 | 60 | 60 | 60 | 60 |
| CAPACITY (T/H) | 25 | 40 | 60 | 90 | 150 |
| BULK DENSITY (KG/M³) | 0.75 | ||||
manufacturing facilities
1

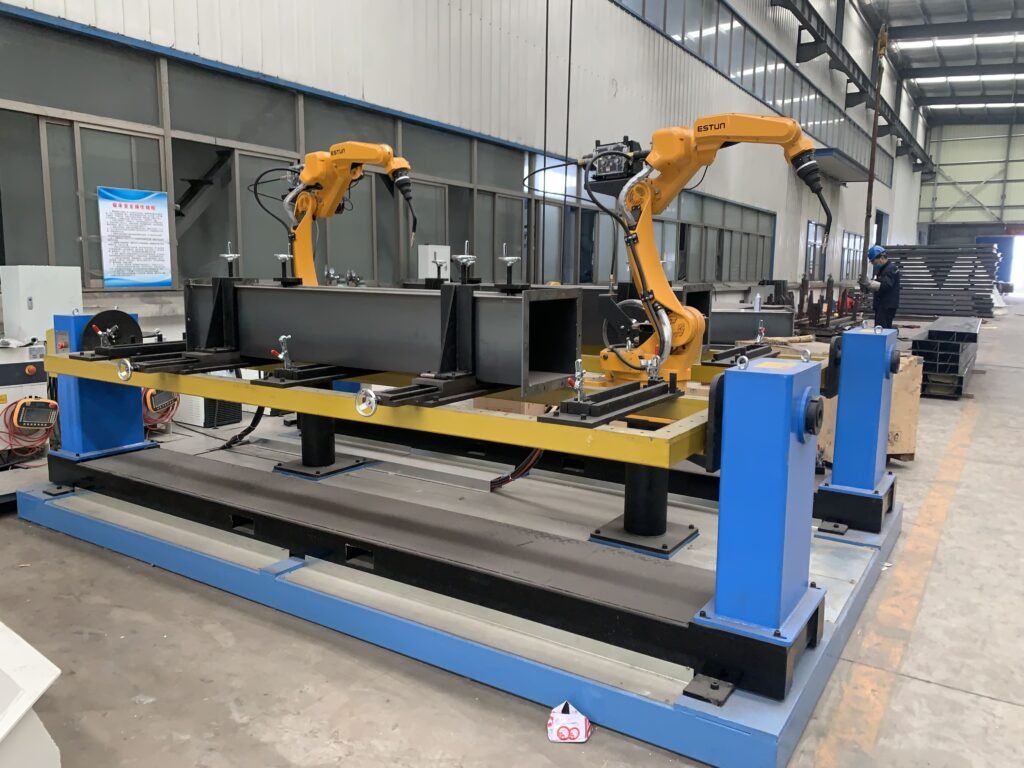

Auto Welding Robot
Our factory has introduced welding robots since 2024, which are specially used to weld bucket elevator barrels and other conveying equipment components. The main purpose is to solve the current higher and higher salary levels and reduce dependence on workers. At the same time, it helps to improve our production capacity. The accuracy of welding robots is unmatched by ordinary workers. The number of welds, the quality of welds, and the accuracy have been greatly improved. In the future, the proportion of robot welding will further increase.
2

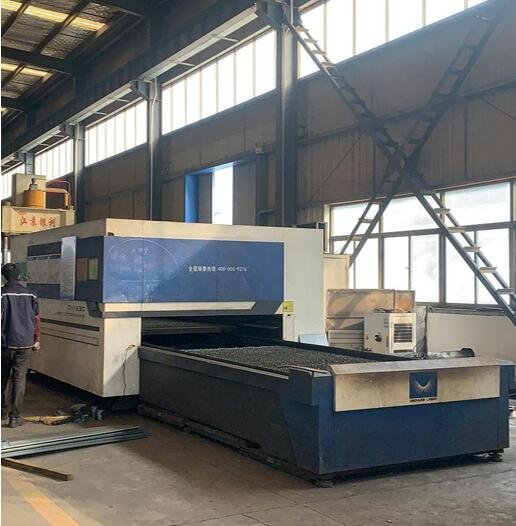

Laser Cutter
This is the laser cutting machine in our factory. High-power laser cutting can ensure that all thickness materials processed in our factory can be processed. Compared with the plasma cutting machine, the precision and appearance of the processed equipment are much better.
3

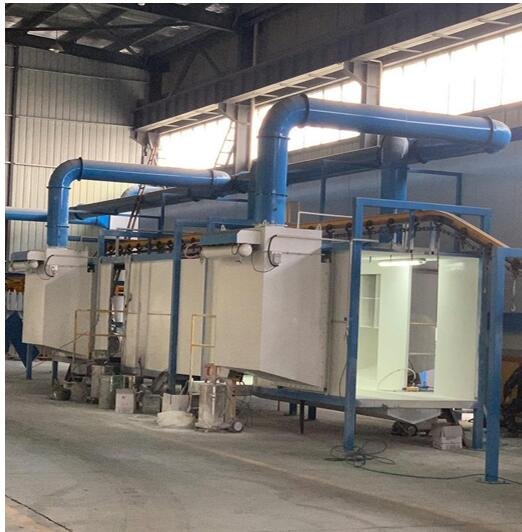

Powder Coating Machine
In 2021, we introduced a powder spraying production line, which not only does not pollute the environment, but also ensures that the surface of our equipment is more beautiful.

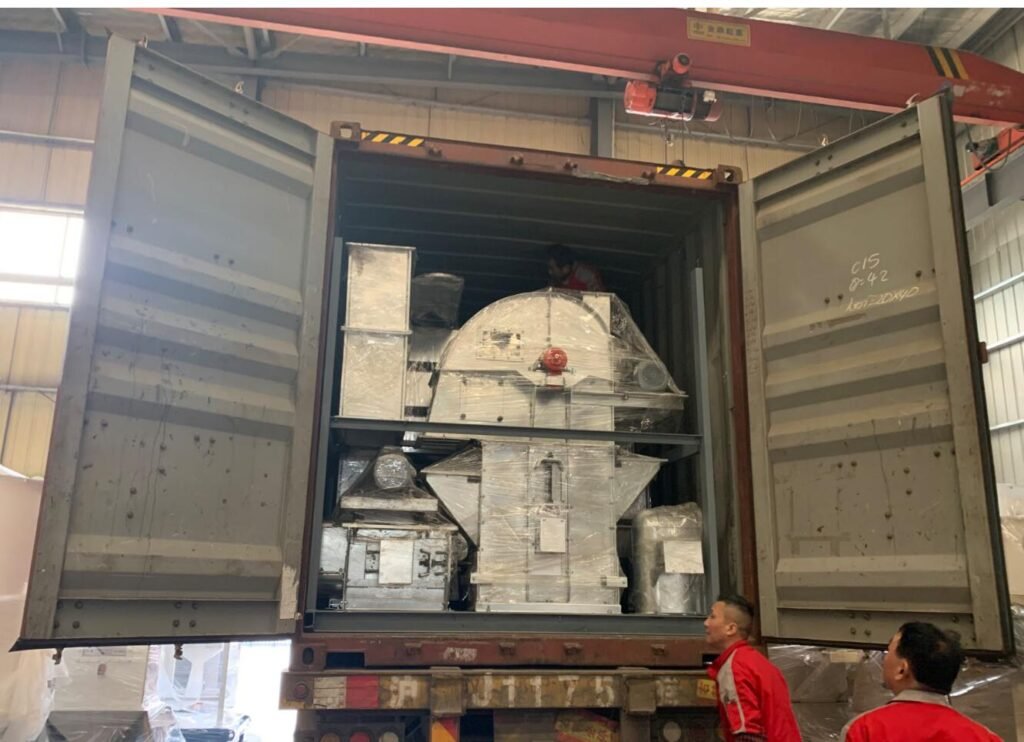

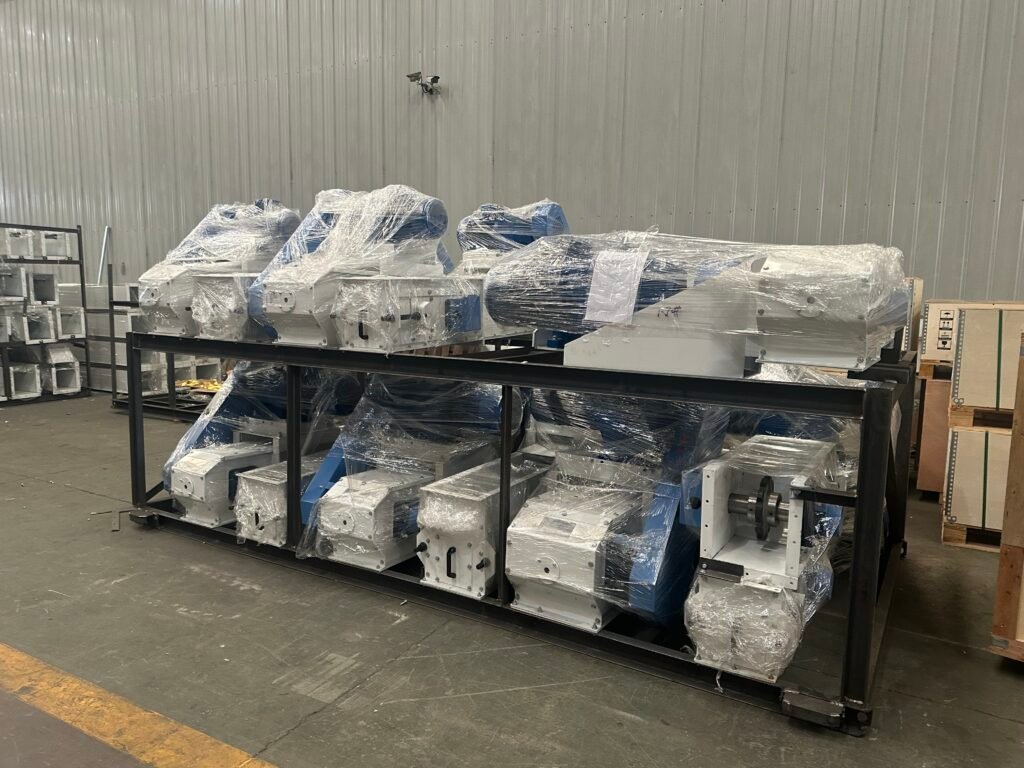

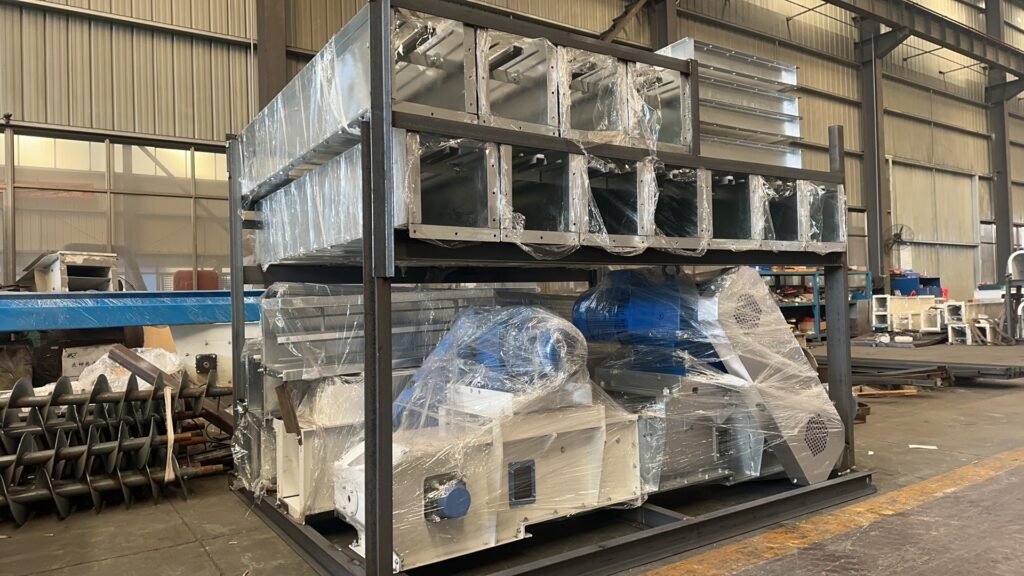

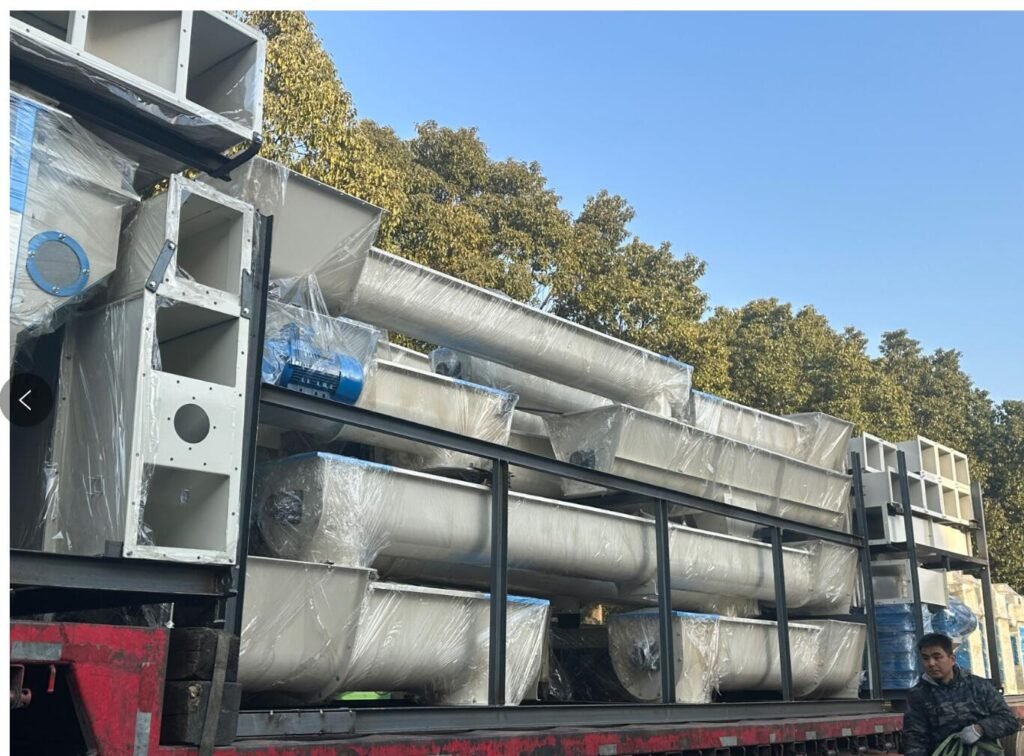

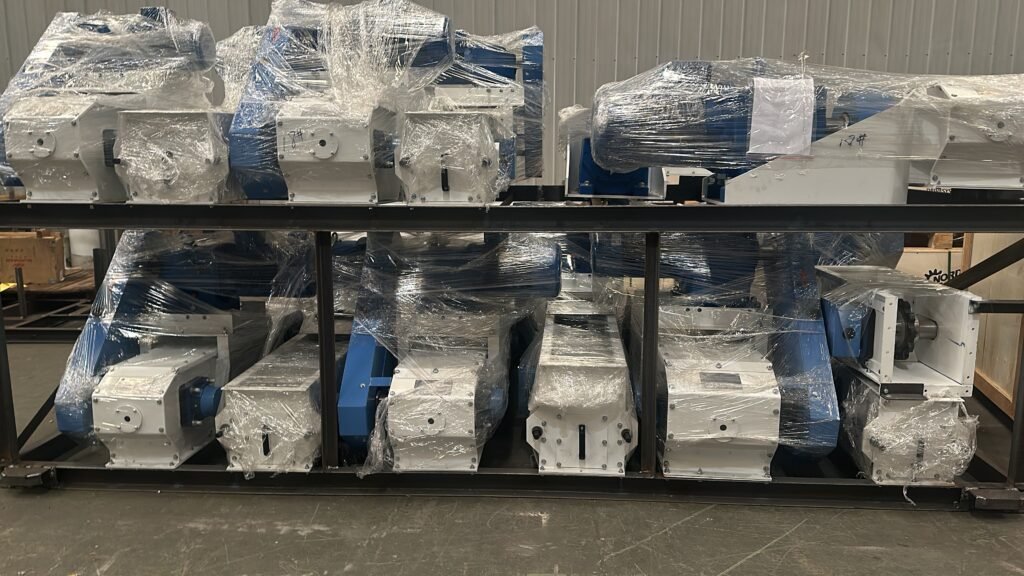

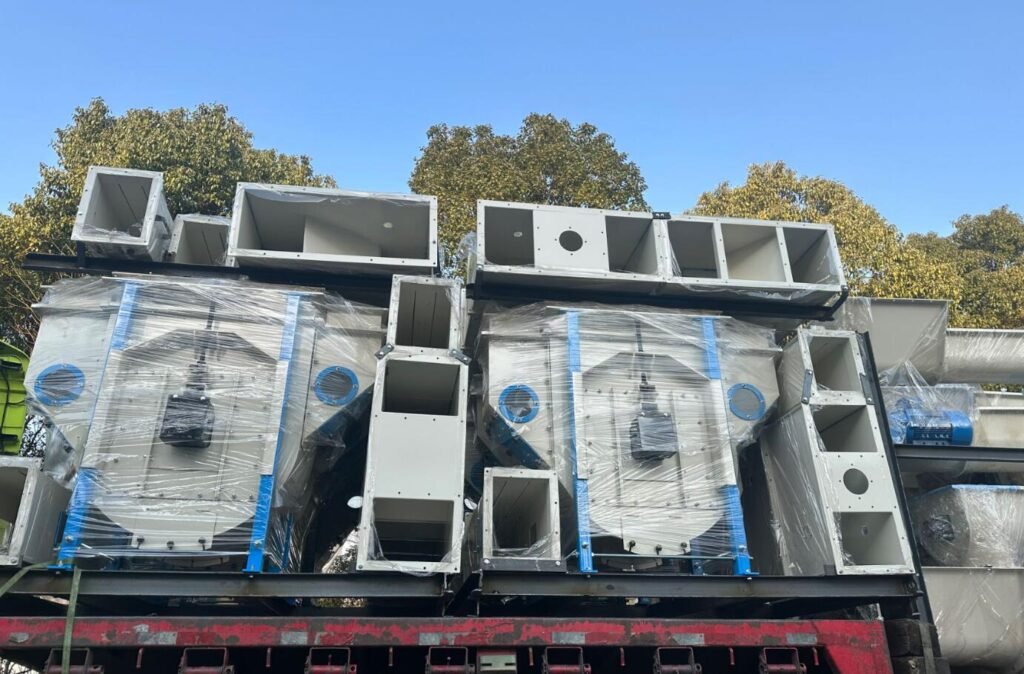

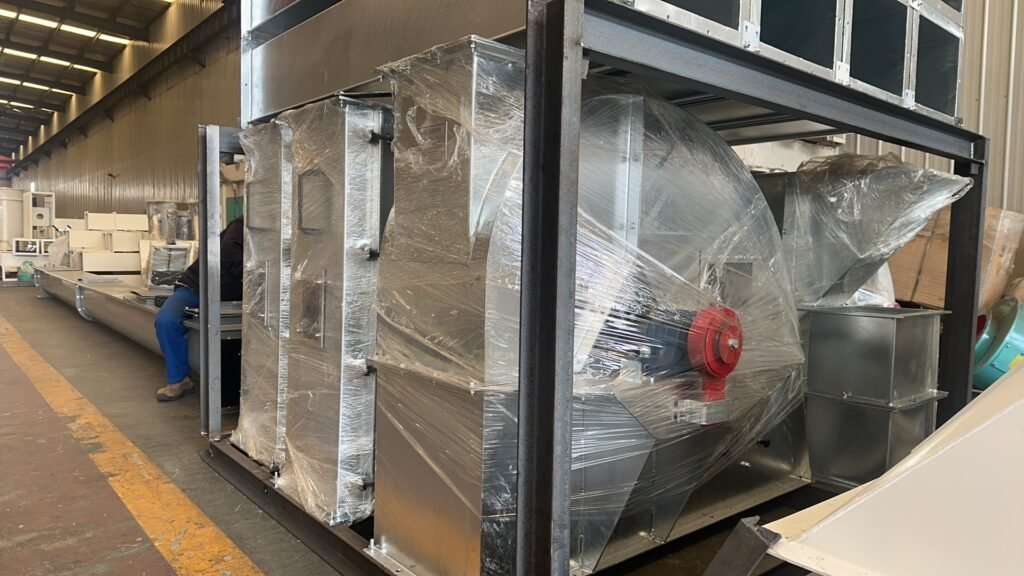

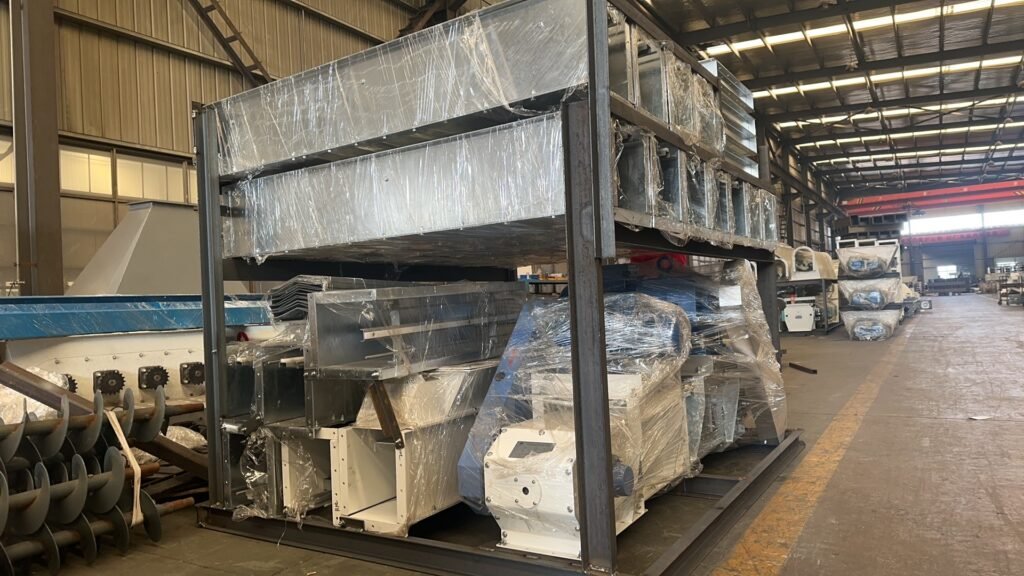

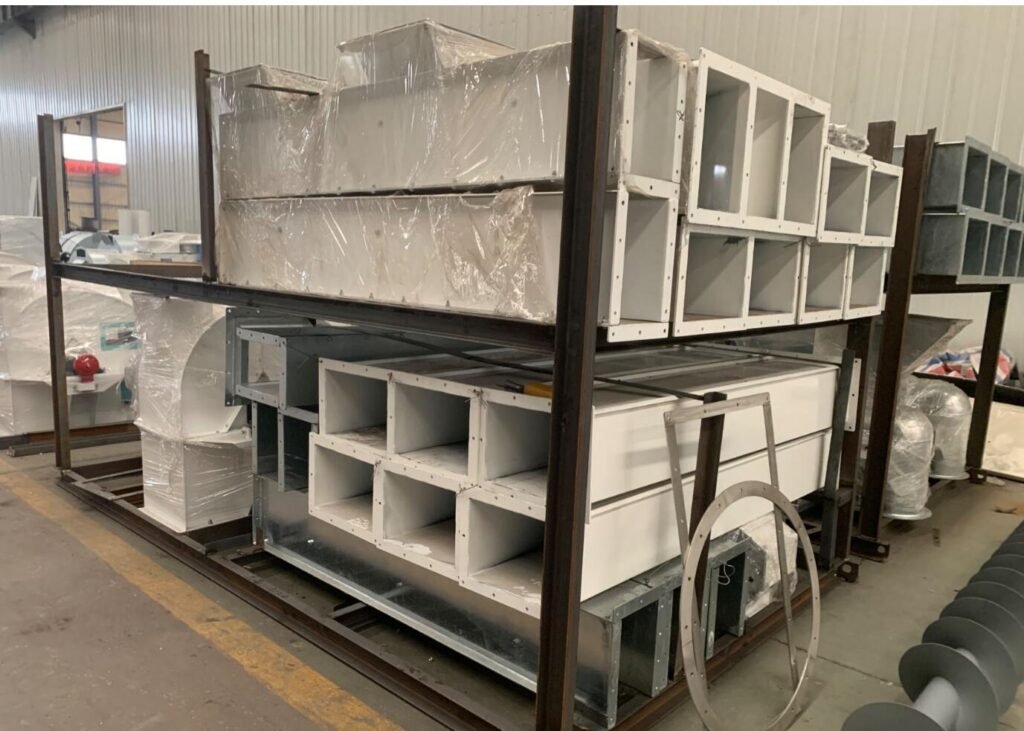

Packing &Delivery

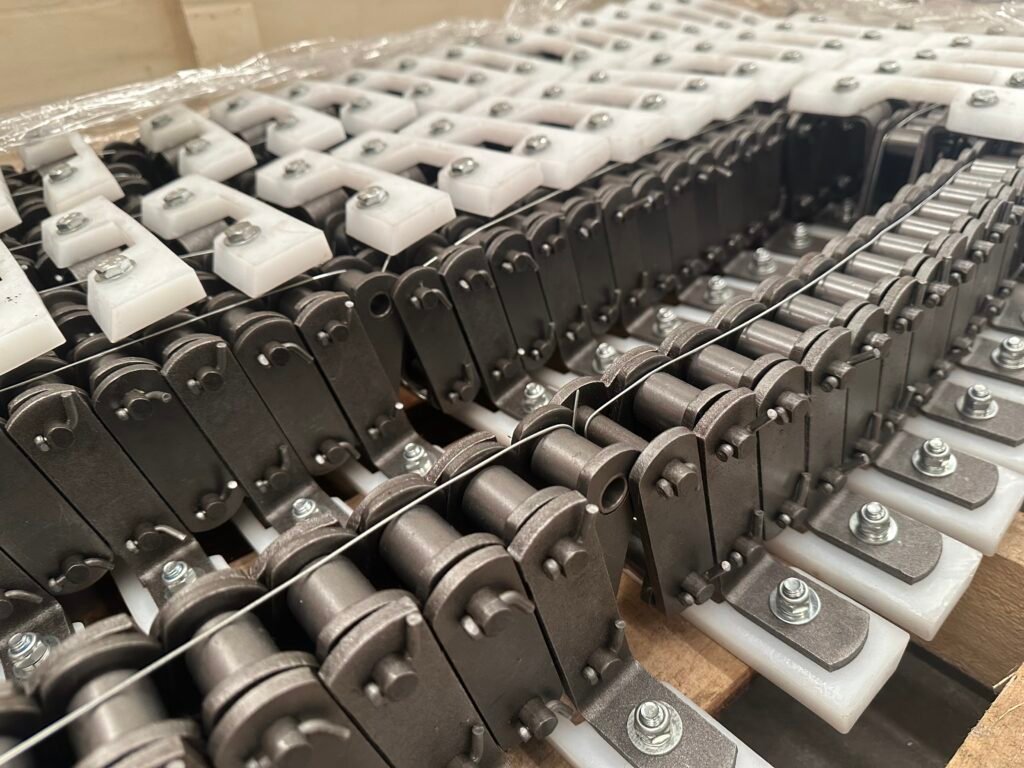

Spare Parts
Gamma Company Advantage
Company Advantage Attract Our Clients To Build Business Relationship With Us
All Makes Models
We offer ring dies and roller parts for leading pellet machine brands including Muyang, Buhler, Van Aarsen, Yemtar, Kahl, ZCME, CPM, and La Meccanica
Quality Control
Our company adheres to a strict quality control management process, backed by an experienced QC team. Every production step is overseen by quality control to ensure the highest standards.
Lifetime Warranty
Our products come with a quality guarantee. If any errors occur, we offer free re-manufacturing. Should quality issues be confirmed as our responsibility, we will also produce again at no extra cost.
Customized Product
We offer customized products based on client specifications, including OEM services for logos and labels, ensuring each product meets individual requirements perfectly.
long Experience
With over 20 years of design and manufacturing experience, our company boasts a large-scale design team along with a dedicated production and quality inspection team.
Fast Delivery
Our company consistently maintains surplus production capacity, ensuring shorter lead times for standard orders. For special requirements, we offer flexible scheduling to accommodate rapid delivery needs.
Get estimated cost
if you have the plan to buy conveyors and elevator machines or spare parts of them for your factory, you can send us the material type and capacity required .so our engineer can choose the most suitable model and make budget offer for you .
