Liquid adding system
after Pelleting
since 2003
after Pelleting
since 2003
Flow Chart
Technical Parameters:
Application product：Feed Process
Capacity:4-35tph
Liquid Type:Oil,Enzyme,Vitamin,Acid
Dosage Percentage:0.005%-8.5%
Accurency: less than 1%
Dimension:4000mmx1500mmx4000mm
Liquid Measure Method:Weighing Loadcell
Feed Measure Method: Flowrate Scale
the products Gamma Offer you

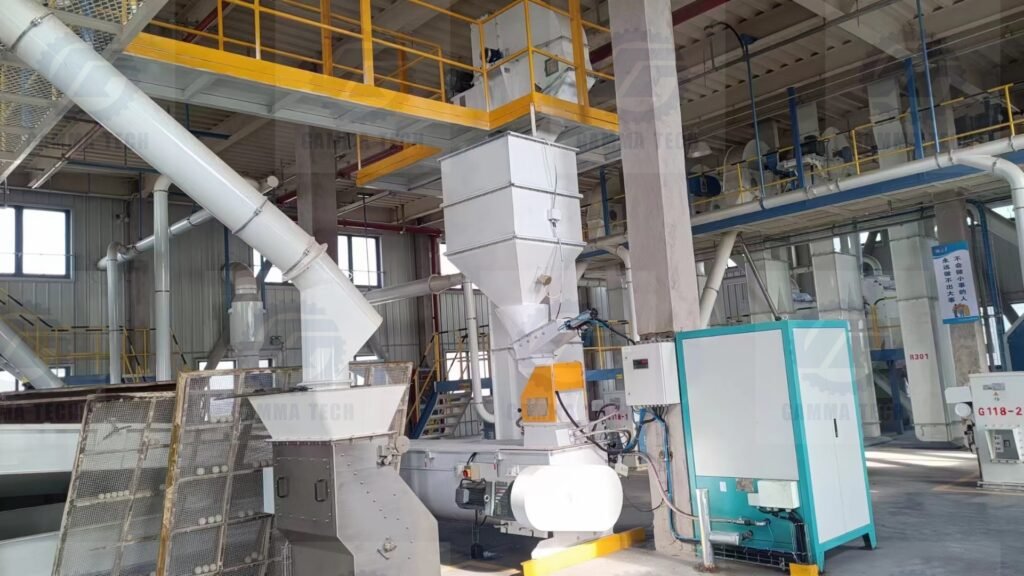

Gamma Tech is a professional manufacturer of feed machinery and auxiliary system. Our company is committed to producing high-quality core feed equipment accessories, serving feed producers worldwide. Our product of oil coating system as below:
Performance Highlights
Achieves the continuous, stable, accurate,and uniform spraying multiple liquids onto the surface of pelleted feed inproportion.The fat coating equipment provides the feasibility for optimizing thefeed formula, effectively reduces the dust content of the feed, and improvesthe quality of the finished feed product.
whole system including
| F100 | OIl COATING SYSTEM | 1 | |
| Model: PPLA-FT-450 | |||
| Consist of: | |||
| F101 | Pneumatic Slide Gate | TZMQ40*40 | 1 |
| F102 | Main flow chamber | 1 | |
| Sensor | HSX-A20kg | 1 | |
| Solenoid valve box | 400x500x200 | 1 | |
| Weighing meter | XK3101C | 1 | |
| Solenoid valve | VUVY-M52-AH-G18-1C1 | 3 | |
| Electric contact pressure gauge | YX-60, 0.6MPa | 2 | |
| F103 | Mixing Blender | 450 | 1 |
| Motor | SEWOR CHINESE TOP BRADN | 1 | |
| Reducer | SEWOR CHINESE TOP BRADN | 1 | |
| Grease nozzle | 9510 | 4 | |
| Pneumatic angle valve | Stainless steel | 2 | |
| F104 | Oil Adding Unit | 1 | |
| Oil pump gear pump | KCB83.3 | 1 | |
| Bar filter | 1 | ||
| Oil Scale | 1 | ||
| F105 | Electric control box | 1400x1200x200 Schneider | 1 |
| PLC | 2080-L50E-48QVB | 1 | |
| Touch screen | MT8102iE TCPIP communication | 1 | |
| Switch power supply | 1 | ||
| Weighing meter | XK3101C | 2 | |
| Inverter | 1 | ||
| Switch | 8 ports | 1 | |
| Technical Parameters: | |||
| ※ The rated feed production rate of PPLA-FT-450 is 4~20 tons/hour; | |||
| ※ The amount of oil added (reference value) is 10 to 60 kg per ton of feed; | |||
| ※ Weighing accuracy: the weighing accuracy of feed is ±3%, the metering accuracy of oil is ±1%, and the coefficient of variation (nozzle uniformity) is <10. | |||
Get Free Quote
If you’re considering to add fat coating system after pelleting , you can try our products meanwhile we also have other feed equipments ,We aim to be your long-term, comprehensive partner for feed machinery ,high quality and long life spam is the point that we are different from other chinese pellet mill suppliers .we are aiming to reducing your machine repairing and spare parts cost .
Make An Trail Order
Please provide detailed information for the feed type and capacity .we will offer you a quotation tailored to your needs.
