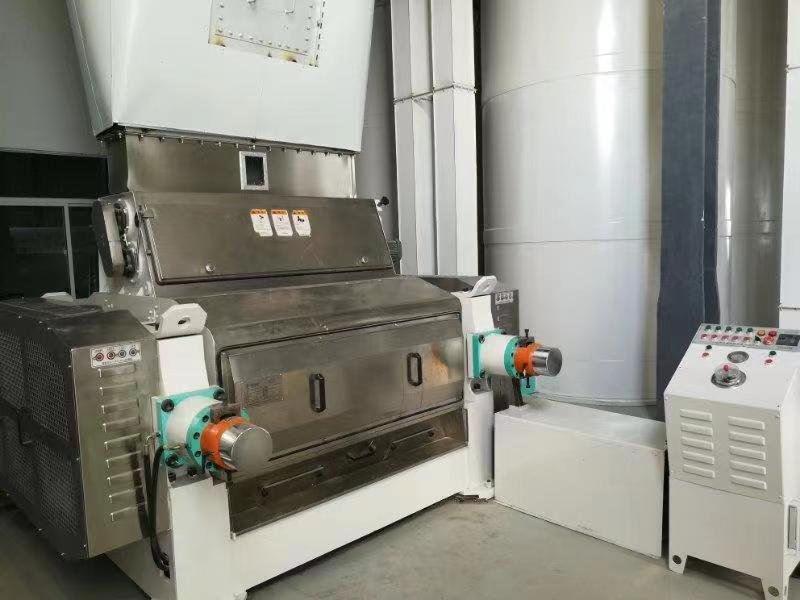

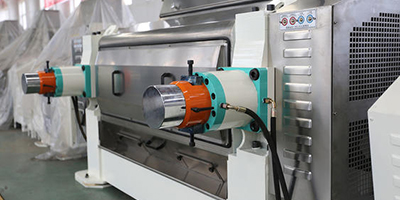

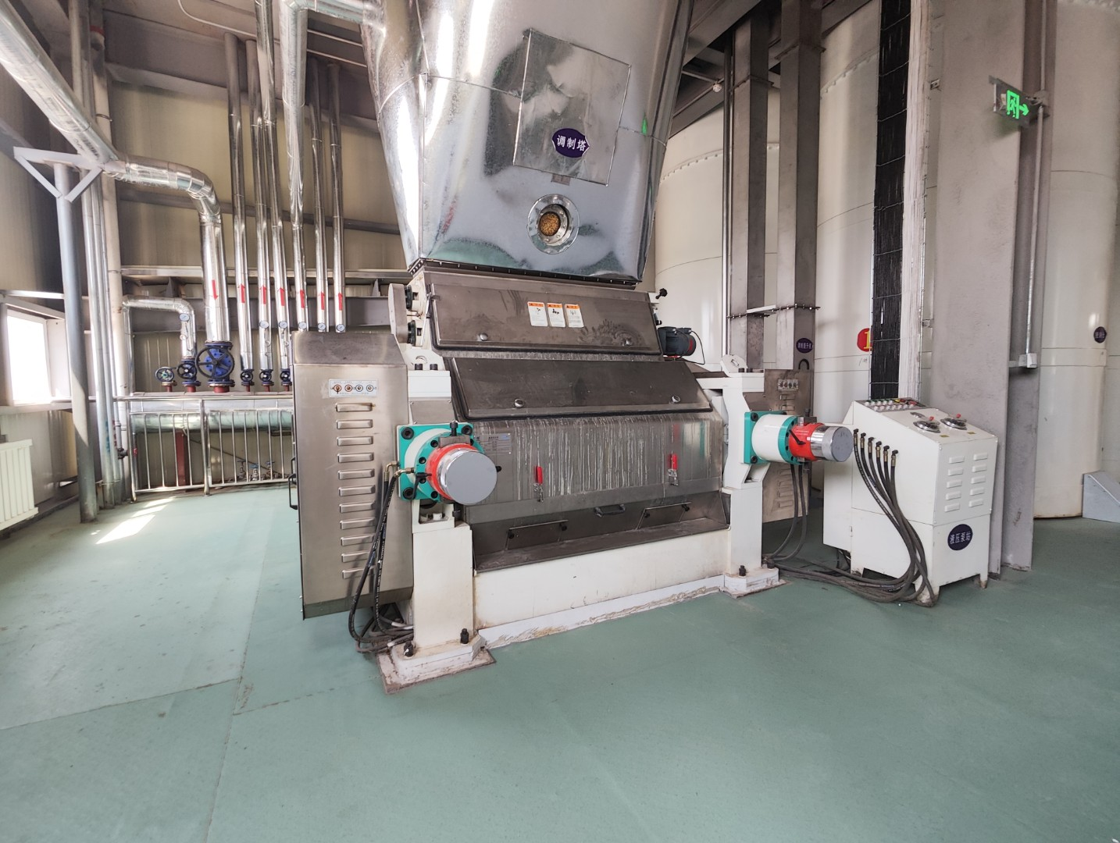

Corn Flake Press Machine
Unlock the full potential of your feed and biomass production with Gamma Tech’s cutting-edge pellet machines. Engineered for excellence, All key parts with international Brands. SKF bearing .Motor is Siemens China Brand,Ring Die with X46CR13 Material HRC 52-55, 20crmnti Roller Shell, Electronic Sonenoid is Omron Brand. the main Gear manufacturing from military manufactruing facilities.long life spam and cpmpitive price is the main advantages our Gamma Pellet Mill. our machinery has been running in China, middle East, South Asia, South American etc Market.
Application
Our pellet machines are widely used across various fields including cattle and sheep feed, poultry and livestock feed, as well as wood pellet production, demonstrating their versatility and effectiveness in meeting diverse processing needs.
Dairy Cow
Sheep
Cattle
Finished Product show
our roller mill can make adjustment of roller gap to handle different particle size of finished product,the main material we handle is corn and soya,many layer chicken feed producer and soya oil factory they use a lot ,below are some photos of crushied corn
Barly Flakes
Corn Flakes
wheat Flakes
the products Gamma Offer you
Gamma Tech is a professional manufacturer of feed and biomass pellet mill. Our company is committed to producing high-quality core feed equipment accessories, serving feed producers worldwide. Our product offerings as below:
Parameter Table
| Model | Capacity（T/d） | Roller Dimensions (mm) | Main Drive Motor Power(KW) | Feeding Motor (KW) | Slab Standard(mm) | Weight(T) | Size（mm） |
|---|---|---|---|---|---|---|---|
| FC7175SF | 240 | 711×1750 | 110（132） | 1.1 | 1.2-2 | 16.5 | 3250×2500×1900 |
| FC7150SF | 200 | 711×1500 | 90(110) | 1.1 | 1.2-2 | 14.5 | 3000×2500×1900 |
| FC7150F | 200 | 700×1500 | 45(55)×2 | 1.1 | 1.2-2 | 13.5 | 2700×2500×1800 |
| FC6150F | 150-180 | 600×1500 | 37×2 | 1.1 | 1.2-2 | 8.5 | 2600×2200×1750 |
| FC6125F | 100-120 | 600×1250 | 30×2 | 1.1 | 1.2-2 | 6.5 | 2300×2100×1650 |
| FC6100F | 60-80 | 600×1000 | 22×2 | 1.1 | 1.2-2 | 5 | 2000×2100×1650 |
| FC6060F | 30-40 | 600×600 | 15×2 | 1.1 | 1.2-2 | 4.2 | 1600×2100×1650 |
Gamma Tech Flaking Mill Character
why so many Group Clients Choose Gamma Tech as long term Cooperation Partner
Extended Service Life and Minimal Maintenance
Gamma Tech's Flaking mill machines are engineered for longevity, requiring less frequent maintenance, which translates into lower operational costs and increased uptime for our clients.
High-Precision Gearbox
Our pellet machines feature gearboxes of exceptional precision, crafted with military-grade machining equipment, ensuring smooth operation and contributing to the machine's overall reliability and efficiency.
Energy-Efficient Performance
Designed with energy conservation in mind, our pellet machines boast low power consumption per ton of output, making them an economical choice for businesses looking to optimize their energy usage while maintaining high productivity.
working vedio
Performance Highlights
- High-Speed Operation: 850-1,200 RPM range boosts throughput 40% vs industry standards
- Low-Fines Output: Differential rotation achieves <8% powder content in crushed product
- Vibration Control: Dynamic balancing reduces operational noise to ≤75dB(A)
Let us talk about your demand of flake press Machine
pls provide us your raw material type ,along with capacity information and particle size you required ,so we can choose the suitable roller mill model for you . with this information we can give you offer very quickly ,act now !
Features
Premium Construction
All-Welded Alloy Frame: Precision-welded structural alloy framework combines industrial durability with streamlined aesthetics.
Intelligent Ferrous Separation
Integrated Magnetic System: Self-cleaning permanent magnetic array protects rollers from metal contaminants, reducing wear by 62% compared to conventional models.
Precision Roller Alignment
Dual-Adjustment Bearing Blocks: Fixed/movable bearing seats enable micrometer-grade roller gap calibration via handwheel controls.
Advanced Drive Technology
Differential Roller Drive: Patented dual-motor system achieves optimal 1:1.5-2 speed ratio, delivering 30% higher throughput through combined shearing/compression action.
Smart Material Handling
Servo-Controlled Feeding: Gear-reduced feed rollers maintain ±2% flow consistency Quick-Adjust Flow Gates: Ergonomic slide gates enable material stream optimization in seconds
Longevity-Optimized Design
Centrifugal Composite Rollers: Bimetal construction pairs 15mm-thick Ni-Cr-Mo alloy shell with shock-absorbing cast iron core Auto-Lube Circuits: Multi-point grease distribution system supports 10,000+ hour maintenance intervals
Get Free Quote
If you’re considering to change your current flaking mill or you want to make expansion for new line, you can try our products meanwhile we also have other feed equipments ,We aim to be your long-term, comprehensive partner for feed machinery ,high quality and long life spam is the point that we are different from other chinese pellet mill suppliers .we are aiming to reducing your machine repairing and spare parts cost .
