Since 2003
the products Gamma Offer you
Gamma Tech is a professional manufacturer of feed and biomass hammer mill. Our company is committed to producing high-quality core feed equipment accessories, serving feed producers worldwide. Our product offerings as below:
Parameter Table
| Model | Motor Power(KW) | Overall Dimensions(mm) | Number of Cavities(PCS) | Number of Hammer Blades(PCS) | Screen Size(mm) | Number of Sieves(PCS) | Bearing Model | Weight(KG) |
|---|---|---|---|---|---|---|---|---|
| Y6075 | 75.7 | 2705×1156×1355 | 2 | 80 | 414×730 | 4 | 6218 | 2474 |
| Y6090 | 90.7 | 2705×1156×1355 | 2 | 80 | 414×730 | 9 | 6218 | 2481 |
| Y60110 | 110.7 | 3000×1160×1355 | 3 | 96 | 336×730 | 6 | 6218 | 3165 |
| Y60132 | 132.7 | 3215×1160×1470 | 4 | 112 | 575×730 | 4 | 6220 | 3502 |
| Y60160 | 160.7 | 3340×1160×1470 | 3 | 120 | 414×730 | 6 | 6220 | 3744 |
| Y60200 | 200.7 | 3610×1175×1500 | 3 | 144 | 492×730 | 6 | 6221 | 4532 |
| Y60220 | 220.7 | 3765×1175×1500 | 3 | 144 | 492×730 | 6 | 6221 | 4552 |
| Y6025 | 250.7 | 3820×1180×1570 | 4 | 160 | 416×730 | 8 | 6224 | 4714 |

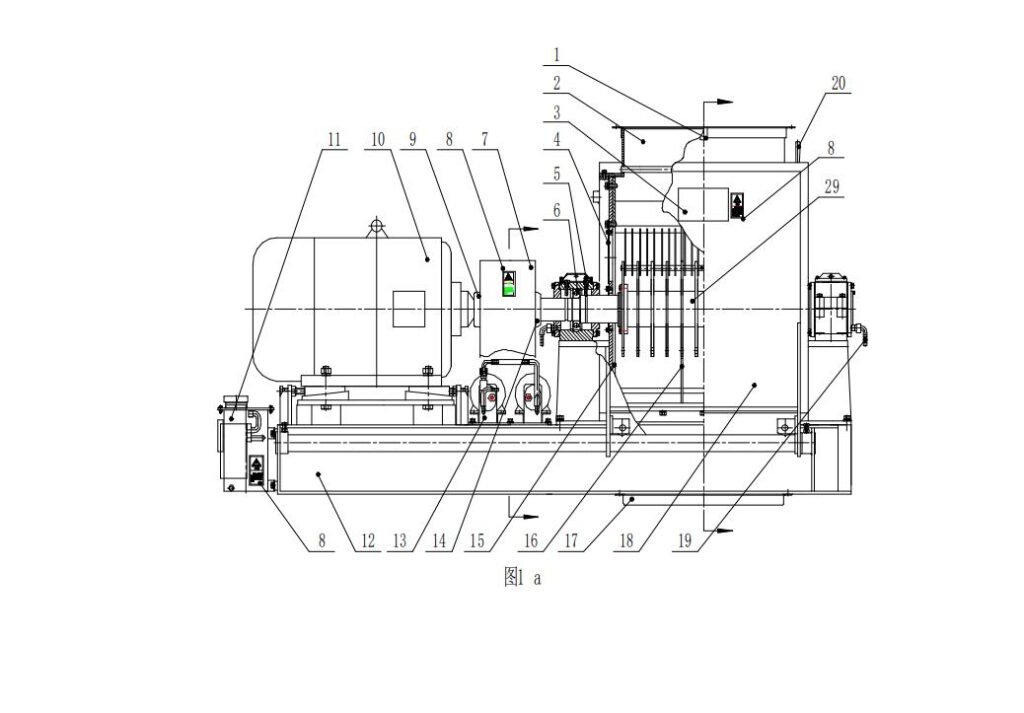

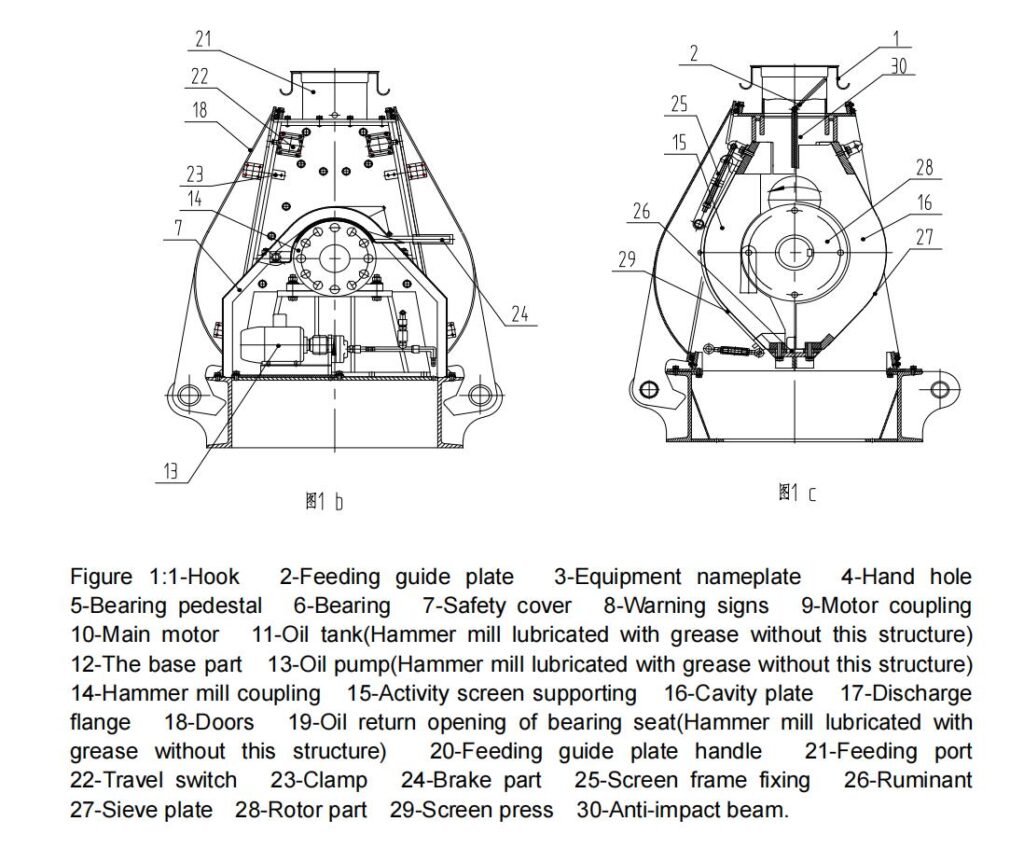

Hammer mill Structure
Hammer mill Operation vedio
Performance Highlights
- High-Speed Operation: 850-1,200 RPM range boosts throughput 40% vs industry standards
- Low-Fines Output: Differential rotation achieves <8% powder content in crushed product
- Vibration Control: Dynamic balancing reduces operational noise to ≤75dB(A)

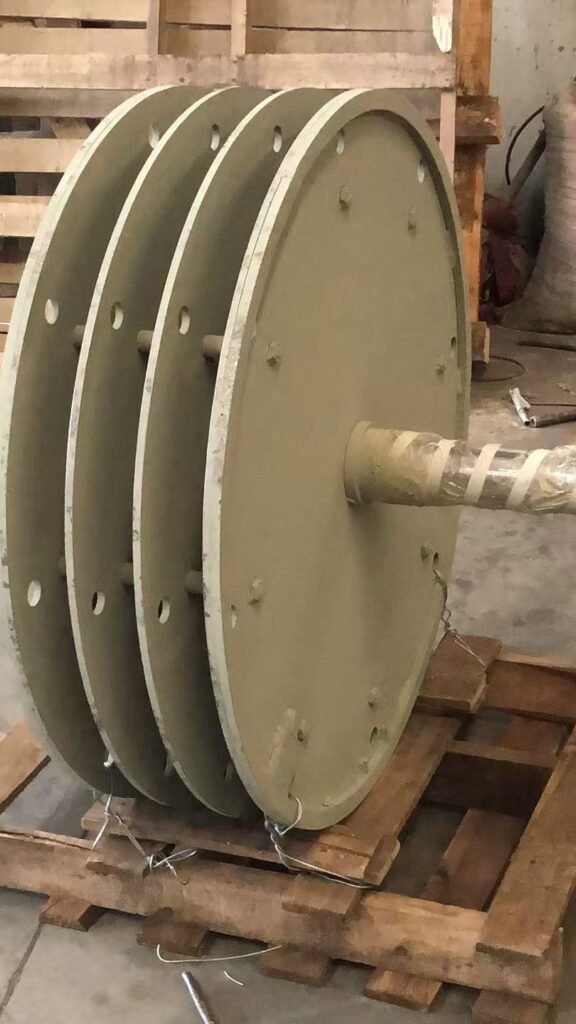

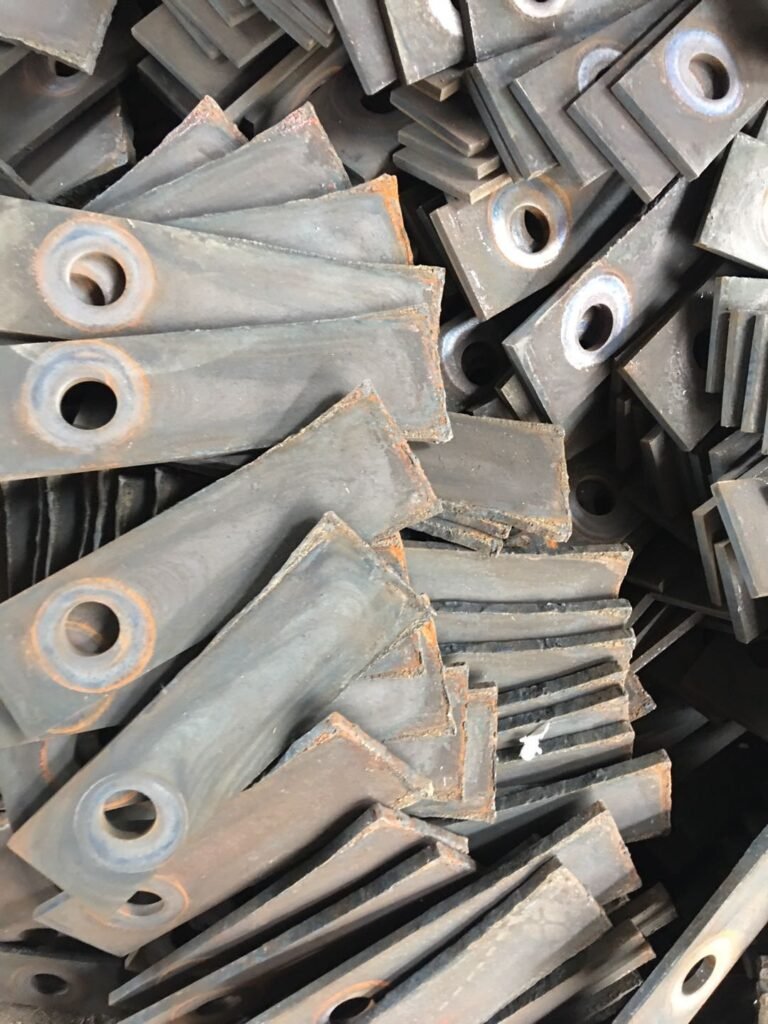

spare Parts
Let us talk about your demand of Roller Mill
pls provide us your raw material type ,along with capacity information and particle size you required ,so we can choose the suitable roller mill model for you . with this information we can give you offer very quickly ,act now !
Features
Premium Construction
All-Welded Alloy Frame: Precision-welded structural alloy framework combines industrial durability with streamlined aesthetics.
Intelligent Ferrous Separation
Integrated Magnetic System: Self-cleaning permanent magnetic array protects rollers from metal contaminants, reducing wear by 62% compared to conventional models.
Precision Roller Alignment
Dual-Adjustment Bearing Blocks: Fixed/movable bearing seats enable micrometer-grade roller gap calibration via handwheel controls.
Advanced Drive Technology
Differential Roller Drive: Patented dual-motor system achieves optimal 1:1.5-2 speed ratio, delivering 30% higher throughput through combined shearing/compression action.
Smart Material Handling
Servo-Controlled Feeding: Gear-reduced feed rollers maintain ±2% flow consistency Quick-Adjust Flow Gates: Ergonomic slide gates enable material stream optimization in seconds
Longevity-Optimized Design
Centrifugal Composite Rollers: Bimetal construction pairs 15mm-thick Ni-Cr-Mo alloy shell with shock-absorbing cast iron core Auto-Lube Circuits: Multi-point grease distribution system supports 10,000+ hour maintenance intervals
Get Free Quote
If you’re considering to change your current hammer mill or you want to make expansion for new line, you can try our products meanwhile we also have other feed equipments ,We aim to be your long-term, comprehensive partner for feed machinery ,high quality and long life spam is the point that we are different from other chinese pellet mill suppliers .we are aiming to reducing your machine repairing and spare parts cost .
