Since 2003
the products Gamma Offer you
Gamma Tech is a professional manufacturer of feed and biomass pellet mill. Our company is committed to producing high-quality core feed equipment accessories, serving feed producers worldwide. Our product offerings as below:
Parameter Table
| Model | Capacity（T/d） | Toothed Roll Specifications(mm) | Power Equipped(KW) | Feed Roller Motor Power(KW) | Particle Size | Weight(T) | Size（mm） |
|---|---|---|---|---|---|---|---|
| GM4210 | 1500 | 400×2100 | 90×1 | 1.1 | 1/4-1/8 | 10 | 3400×1500×2150 |
| GM305183S | 1000 | 305×1830 | 75×1 | 1.1 | 1/4-1/8 | 9 | 2900×1100×2000 |
| GM4150 | 400-500 | 400×1500 | 22×2 | 0.55 | 1/4-1/8 | 7.5 | 2680×1250×1950 |
| GM4125 | 350-400 | 400×1250 | 18.5×2 | 0.55 | 1/4-1/8 | 6.5 | 2300×1250×1950 |
| GM4100 | 300-350 | 400×1000 | 15×2 | 0.55 | 1/4-1/8 | 5 | 2000×1250×1800 |
| GM3125 | 250-300 | 300×1250 | 18×2 | 0.55 | 1/4-1/8 | 3.8 | 2200×1100×1800 |
| GM3100 | 200-250 | 300×1000 | 15×2 | 0.55 | 1/4-1/8 | 3.4 | 1900×1100×1800 |
| GM25125 | 180-250 | 250×1250 | 15×2 | 0.55 | 1/4-1/8 | 3.5 | 2200×920×1700 |
| GM25100 | 150-200 | 250×1000 | 11×2 | 0.55 | 1/4-1/8 | 3 | 1900×920×1700 |
| GM2580 | 80-100 | 250×800 | 11×2 | 0.55 | 1/4-1/8 | 2.2 | 1700×920×1700 |
Roller Mill Vedio
Performance Highlights
- High-Speed Operation: 850-1,200 RPM range boosts throughput 40% vs industry standards
- Low-Fines Output: Differential rotation achieves <8% powder content in crushed product
- Vibration Control: Dynamic balancing reduces operational noise to ≤75dB(A)
Let us talk about your demand of Roller Mill
pls provide us your raw material type ,along with capacity information and particle size you required ,so we can choose the suitable roller mill model for you . with this information we can give you offer very quickly ,act now !
Features
Premium Construction
All-Welded Alloy Frame: Precision-welded structural alloy framework combines industrial durability with streamlined aesthetics.
Intelligent Ferrous Separation
Integrated Magnetic System: Self-cleaning permanent magnetic array protects rollers from metal contaminants, reducing wear by 62% compared to conventional models.
Precision Roller Alignment
Dual-Adjustment Bearing Blocks: Fixed/movable bearing seats enable micrometer-grade roller gap calibration via handwheel controls.
Advanced Drive Technology
Differential Roller Drive: Patented dual-motor system achieves optimal 1:1.5-2 speed ratio, delivering 30% higher throughput through combined shearing/compression action.
Smart Material Handling
Servo-Controlled Feeding: Gear-reduced feed rollers maintain ±2% flow consistency Quick-Adjust Flow Gates: Ergonomic slide gates enable material stream optimization in seconds
Longevity-Optimized Design
Centrifugal Composite Rollers: Bimetal construction pairs 15mm-thick Ni-Cr-Mo alloy shell with shock-absorbing cast iron core Auto-Lube Circuits: Multi-point grease distribution system supports 10,000+ hour maintenance intervals
Structure Details

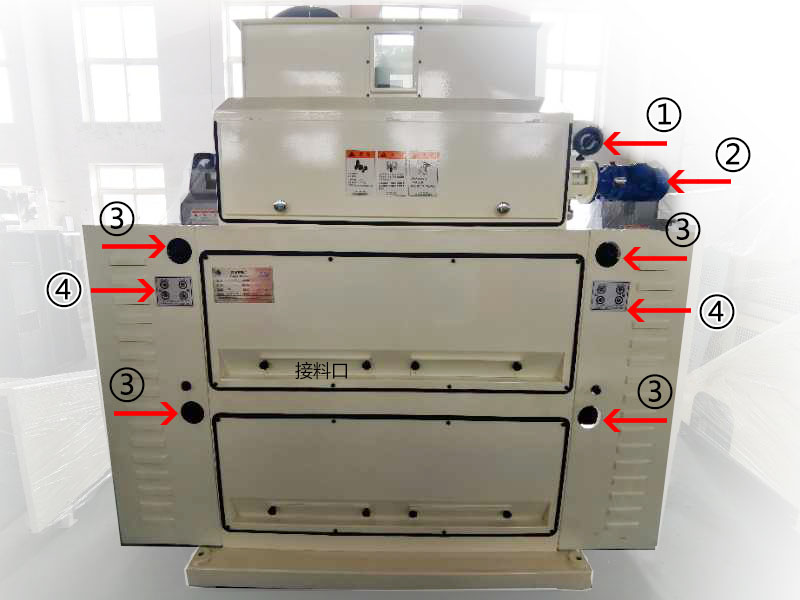

① Material door adjustment hand wheel
② Feeding motor
③ Gear roller adjustment nut
④ Bearing oil filling point (high temperature grease, oil filling once a week)

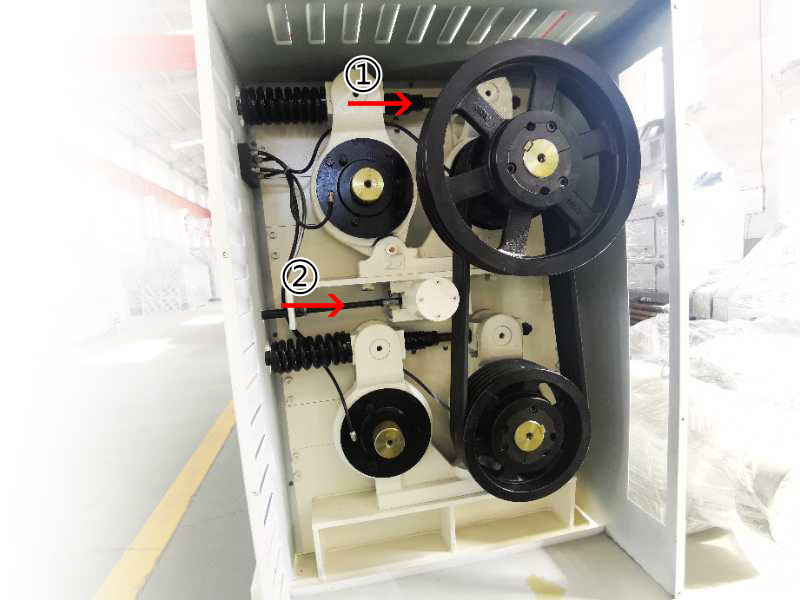

① Screw lifter
② Gravity indicator handwheel
③ Synchronizer
④ Fastening screw

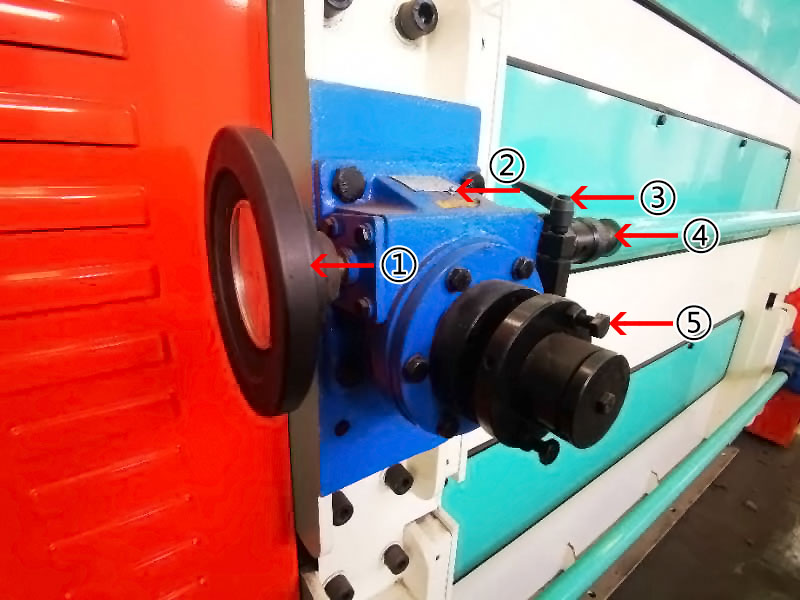

① Gravity indicator handwheel
② Lifter oil filling hole
③ Adjustable handle
④ Synchronizer fastening nut
⑤ Fastening screw
Finished Product show
our roller mill can make adjustment of roller gap to handle different particle size of finished product,the main material we handle is corn and soya,many layer chicken feed producer and soya oil factory they use a lot ,below are some photos of crushied corn
Product Photo 1
Product Photo 2
Product Photo 3
Operation&Maintainance
1
Lubrication
Oil Greasing point on one side of the machine Note: Lithium-based grease (Greasing once a week)
2
Maintainance
1. Remove impurities After the machine is working normally, the iron materials on the magnetic separation plate should be observed and removed from time to time to avoid affecting the normal material drop and damaging the gear roller. 2. Gear roller repair When the teeth of the gear roller become blunt, the crushing effect is significantly reduced, the output is reduced, and it needs to be removed and returned to the factory for wire drawing. 3. Lubrication and maintenance Refer to the lubrication point distribution diagram shown in the figure, and regularly maintain and oil each part of the equipment. 4. Always check the tension of all transmission angle belts. If they are loose, they should be adjusted in time. 5. Always check whether the fasteners and connectors of each part of the machine are loose. If they are loose, they should be tightened in time. 6. The gear roller should be checked regularly. When the gear roller is blunt, it should be wired in time. When the alloy layer of the gear roller is almost exhausted, it cannot be used and needs to be replaced with a new roller.
The FAQs About Gamma Roller Mill
Please note that the final cost depends on the customized service you require, the specifications of the raw materials used, the relevant national laws, and the distance of transportation. Take the example of booking a tall container of products:
Can you customize products based on our specific requirements
Yes, we offer customized products including logos and labels through our OEM services tailored to meet your precise specifications. if you have drawing so we can make it
do you have any quality insurance
Absolutely. We provide a quality guarantee for our products. Should any manufacturing errors occur, we commit to free re-manufacturing. If quality issues are confirmed to be our responsibility, we will also offer a re-production at no additional cost.
What are your standard delivery times, and can they be expedited for urgent orders
Our company maintains surplus production capacity to ensure shorter lead times for standard orders. For special requirements, we offer flexible scheduling to accommodate rapid delivery needs, subject to customer qualification verification.regularly our ring die 60 working days
what shall I provide to you to confirm Ring Die Model
Normally we need to confirm which type of feed you are going to produce and what is the rough capacity based on which commpressing ratio . then we can give you suitable recommendation
how many years of spare parts you can guarantee
We provide spare parts for our pellet mills minimun 15 years.all models and spare parts we have in our company system
How are your products packaged for shipment?
Our products undergo a thorough cleaning before being securely packaged. We use plastic film and wooden crates to ensure the safety and integrity of the products during transportation, adhering to customer specifications.
What shipping methods do you offer?
Seafreight
Get Free Quote
If you’re considering to change your current Roller mill or you want to make expansion for new line, you can try our products meanwhile we also have other feed equipments ,We aim to be your long-term, comprehensive partner for feed machinery ,high quality and long life spam is the point that we are different from other chinese pellet mill suppliers .we are aiming to reducing your machine repairing and spare parts cost .
